Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: Battery Disconnect and Connect .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting .
Drain the coolant system.
Refer to: Cooling System Draining and Vacuum Filling .
Remove the air intake resonator.
Refer to: Intake Air Resonator .

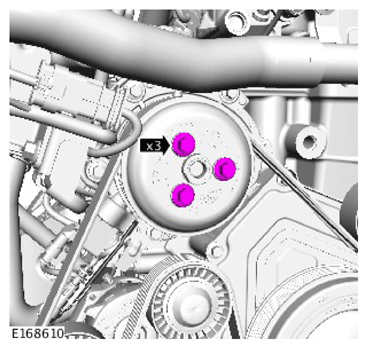

Loosen the 3 coolant pump pulley bolts, but do not fully remove.

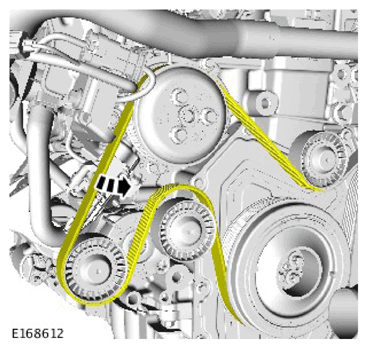

- Release the tension on the front end accessory drive belt.
- Lock the tensioner in position using a suitable tool.
Remove the front end accessory drive belt off the pulleys and reposition away from the coolant pump.

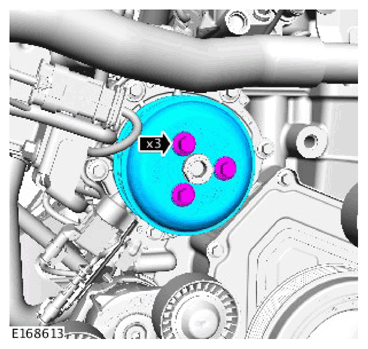

Fully remove the 3 bolts and then remove the coolant pump pulley.

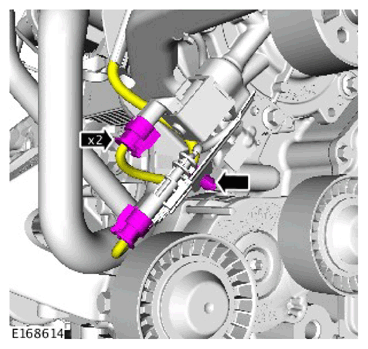

Disconnect the 2 electrical connectors from the coolant pump assembly.
CAUTION: Make sure that the wiring harness is positioned securely to one side, to prevent it being trapped between the coolant pump and engine block when the coolant pump is installed.
CAUTION: Be prepared to collect escaping coolant.

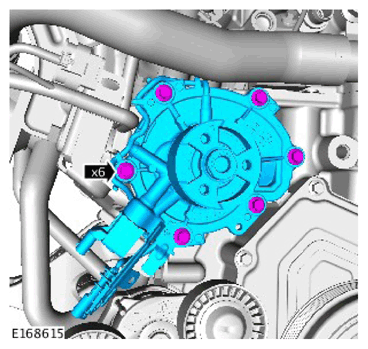

- Remove the 6 bolts from the coolant pump assembly.
- Remove the coolant pump.
- If the coolant pump is to be reused, inspect the coolant pump seal for damage. If any damage is visible, a new coolant pump must be installed.
