Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.

All vehicles

  1. Remove the expansion tank cap. Using a suitable syringe, remove the coolant from the expansion tank.
    CAUTION: Correct installation of the coolant expansion tank cap can be obtained by tightening the cap until 3 audible clicks are heard.

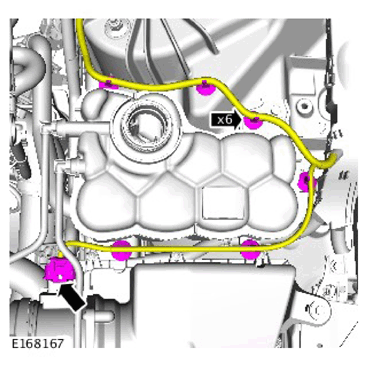

  2. G11307135

    Vehicles with diesel engine

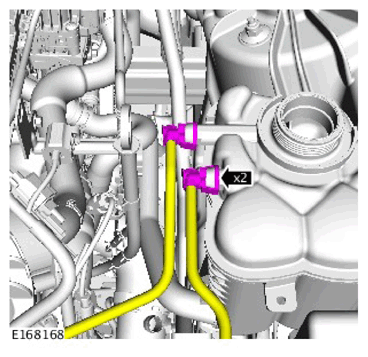

  3. G11307136

    Vehicles with petrol engine

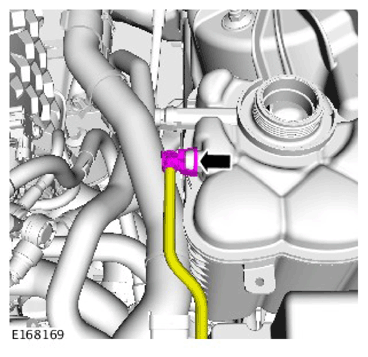

  4. G11307137

    All vehicles

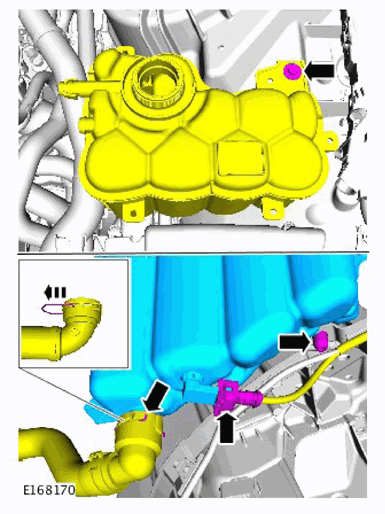

  5. G11307138

    Torque: 7 Nm
