Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Condenser - INGENIUM I4 2.0L Diesel .
  3. Refer to: COOLING SYSTEM PARTIAL DRAINING, FILLING AND BLEEDING .
  4. CAUTION: Be prepared to collect escaping coolant.
    G11307165
  5. CAUTION: Be prepared to collect escaping coolant.

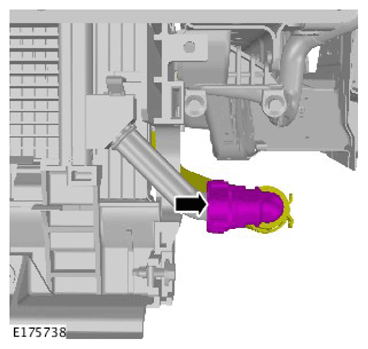

    G11307172

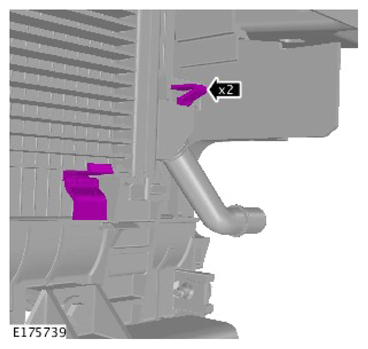

  6. G11307173

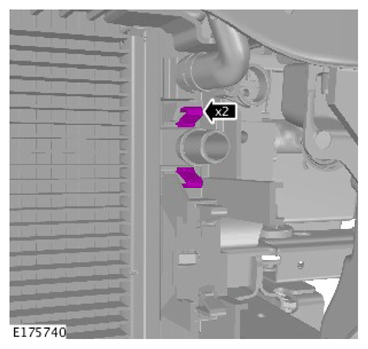

  7. G11307174

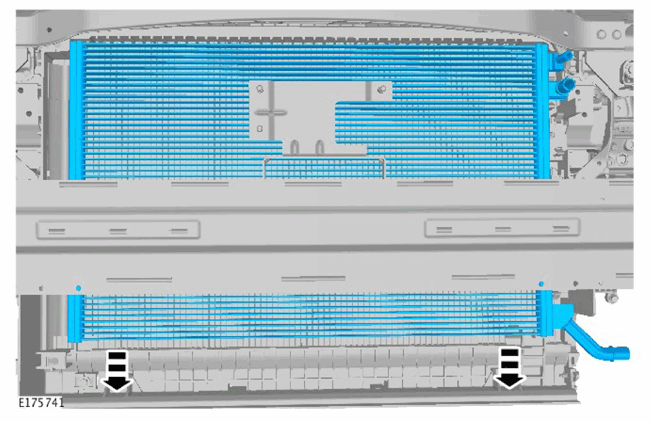

  8. G11307175
