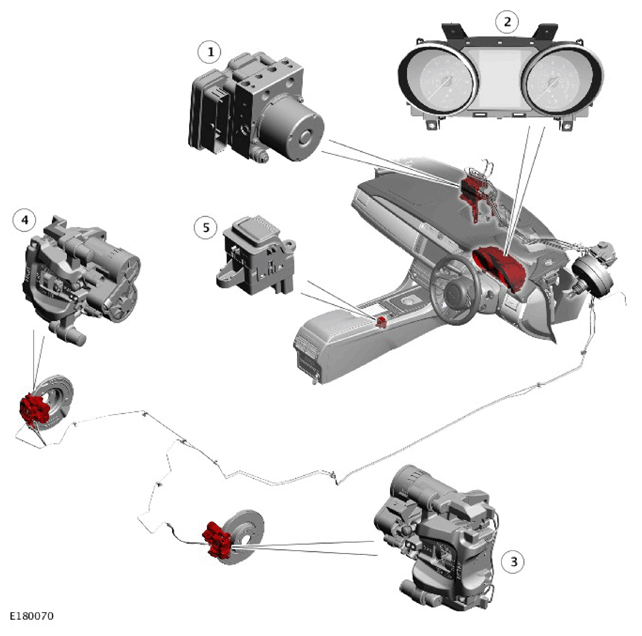

Component Location
NOTE:
Right Hand Drive (RHD) vehicle is shown. The Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock Brake System (ABS) control module |
| 2 | Instrument Cluster (IC) |
| 3 | Right Electric Park Brake (EPB) actuator |
| 4 | Left Electric Park Brake (EPB) actuator |
| 5 | Electric Park Brake (EPB) switch |
