Removal And Installation: Turbocharger: Removal

WARNING: This page is about a different car, the 2018 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Make sure that all openings are sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the battery ground cable.
Refer to: BATTERY DISCONNECT AND CONNECT (General Procedures).
Remove the intake air resonator.
Refer to: INTAKE AIR RESONATOR .
Remove the air deflector.
Refer to: AIR DEFLECTOR .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (General Procedures).

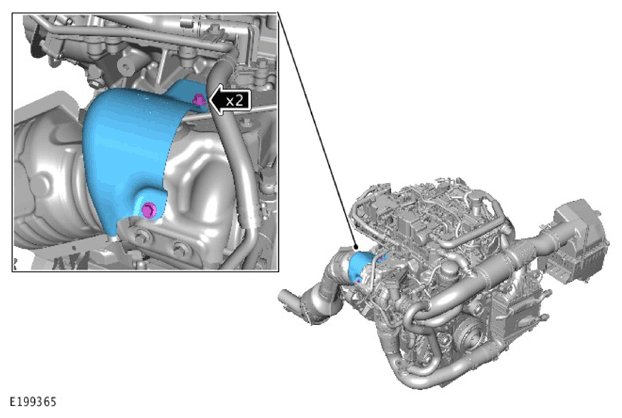

Remove the turbocharger upper heatshield.
Remove the turbocharger upper heatshield.
Remove the turbocharger upper heatshield.

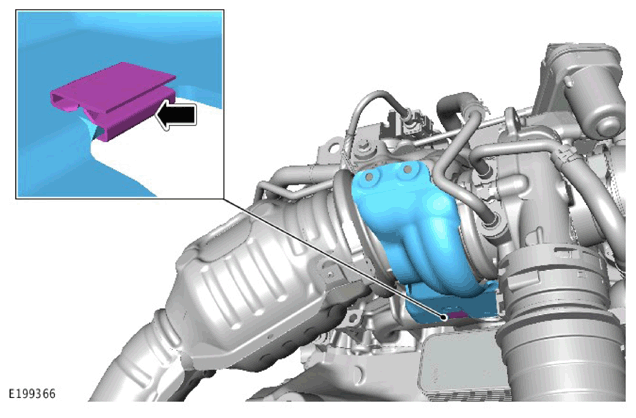

Remove the turbocharger lower heatshield.
CAUTION: Be prepared to collect escaping oil.
- Release the turbocharger oil feed pipe.
- Remove and discard the banjo bolt and washers.
CAUTION: Be prepared to collect escaping coolant.
- Release the coolant pipes.
- Inspect the seals. Replace if damaged.

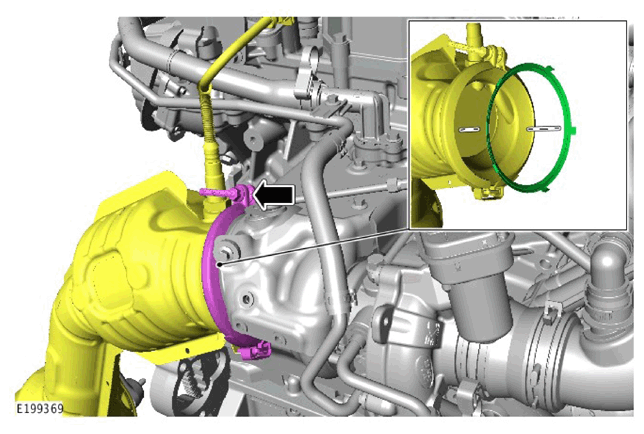

- Release the catalytic converter from the turbocharger.
- Remove and discard the gasket.
- Remove and discard the clamp.

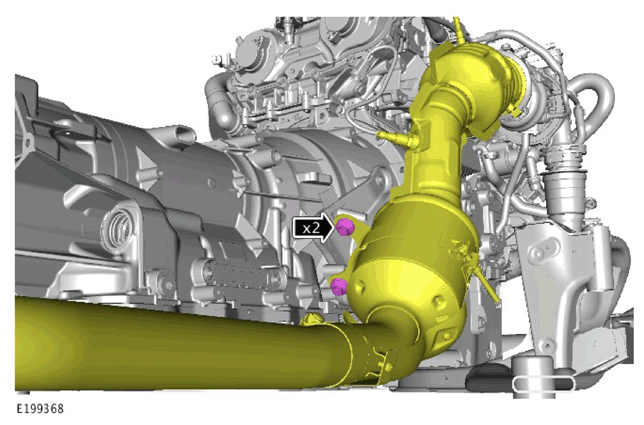

Release the catalytic converter.
- Remove the turbocharger outlet pipe.
- Inspect the seals. Replace if damaged.
CAUTION: Be prepared to collect escaping oil.
- Remove the turbocharger oil return tube using the sequence illustrated.
- Remove and discard the O-ring seals.
Disconnect the electrical connector.
Remove the turbocharger.
Remove and discard the turbocharger gasket.
