Component Location

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

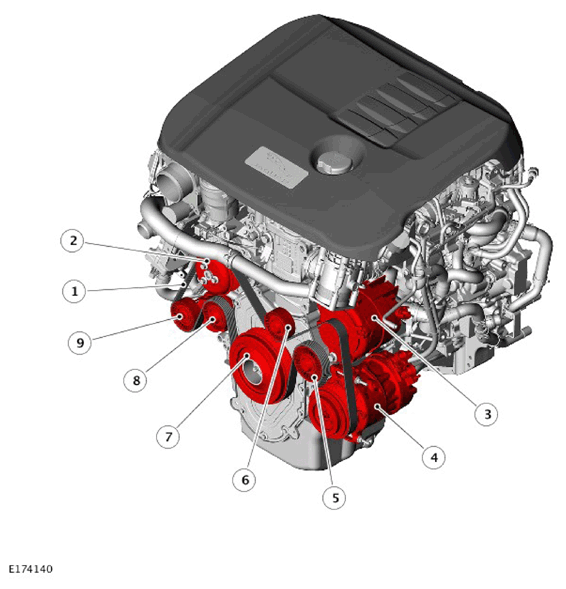

G11307979
ITEM DESCRIPTION
1 Accessory drive belt
2 Coolant pump pulley
3 Generator
4 Air conditioning compressor
5 Idler pulley
6 Idler pulley
7 Crankshaft drive pulley
8 Belt tensioner
9 Idler pulley
