Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the cylinder head valve components are to be reused, mark position of the valve components to make sure they are reassembled in the same position.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustration showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

    General Equipment:  Two-post lift

  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  3. Remove the cylinder head.

    Refer to: Cylinder Head .

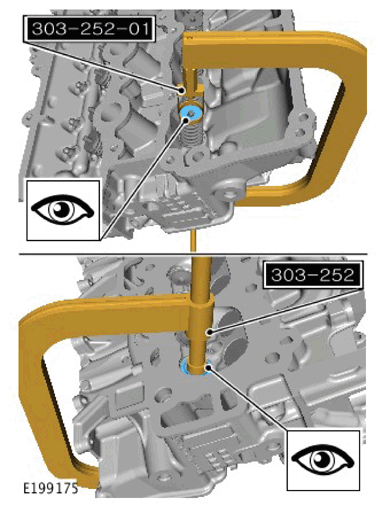

  4. G11306855

    Position the special tools as illustrated.

    Special Tool(s):  303-252

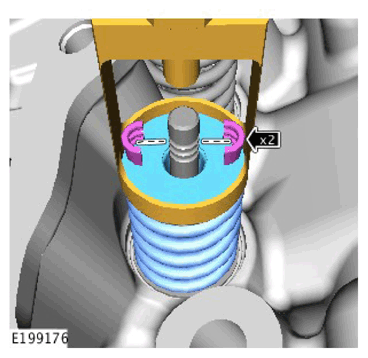

  5. G11306856

    Tighten the special tool until the valve spring retaining collets can be removed.

  6. Remove the special tool.

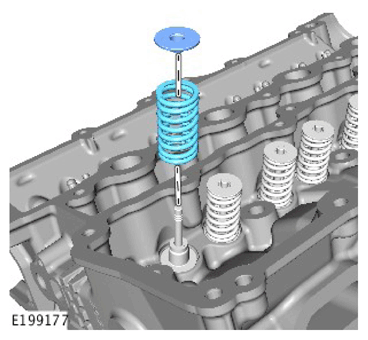

  7. G11306857

    Remove the valve spring and cap.

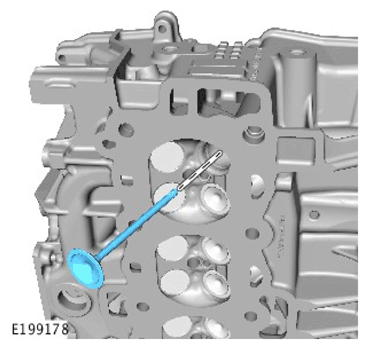

  8. G11306858

    Remove and inspect the valve.

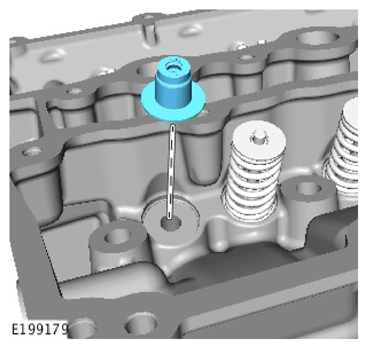

  9. G11306859

    Remove and discard the valve stem seal.

  10. Repeat the removal procedure for the remaining valves.
