Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Follow the tightening sequence.
    NOTE: This step is only required if previously removed.

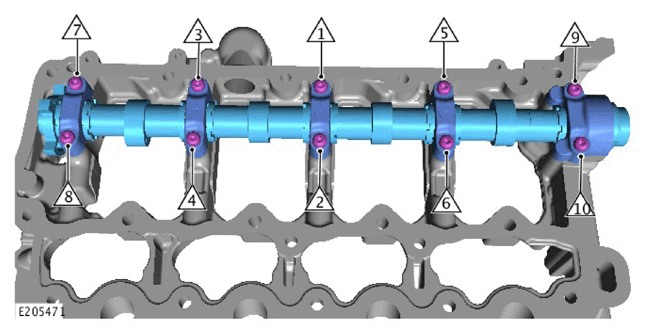

    Fig 1: Intake Camshaft Cap Bolts Tightening Sequence
    G11306869Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the inlet camshaft.
    • Install the camshaft bearing caps into the previously noted position. Lubricate the camshaft and the camshaft bearing caps with a small quantity of clean engine oil.
    • Tighten the 10 camshaft bearing cap bolts following the tightening sequence as illustrated.

    Torque Specification: 11 Nm

  2. Follow the tightening sequence.
    NOTE: This step is only required if previously removed.

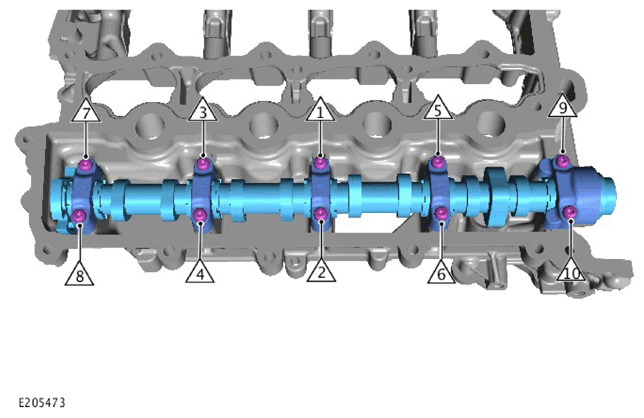

    Fig 2: Exhaust Camshaft Cap Bolts Tightening Sequence
    G11306870Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the exhaust camshaft.
    • Install the camshaft bearing caps into the previously noted position. Lubricate the camshaft and the camshaft bearing caps with a small quantity of clean engine oil.
    • Tighten the 10 camshaft bearing cap bolts following the tightening sequence as illustrated.

    Torque Specification: 11 Nm

  3. NOTE: This step is only required if previously removed.

    Install the oil filler pipe and tighten the retaining bolt to the correct torque. Make sure that a new O-ring seal is installed.

    Renew Part: Oil fill pipe O-ring seal Quantity: 1.

    Torque Specification: 12 Nm

  4. NOTE: This step is only required if previously removed.

    Install the Camshaft Position (CMP) sensors.

    Torque Specification: 8 Nm

  5. Install a new valve cover gasket.

    Renew Part: Camshaft cover gasket.

  6. Follow the tightening sequence.
    G11306871

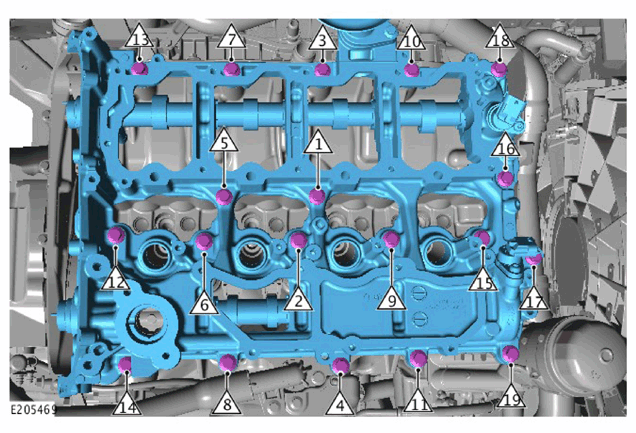

    Fig 3: Valve Cover Bolts Tightening Sequence
    G11306871Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the valve cover.
    • Install and tighten the bolts in the sequence illustrated to the joining torque figure.

      Torque Specification: 10 Nm

    • Tighten the bolts in the sequence illustrated to the final torque figure.

      Torque Specification: 28 Nm

  7. Install the coolant bypass hose into the correct position. Tighten the 2 retaining studs to the correct torque.

    Torque Specification: 10 Nm

  8. Install the 2 engine cover support mounts and tighten to the correct torque.

    Torque Specification: 6 Nm

    • Install the wiring harness into the correct position.
    • Install the 2 retaining bolts and tighten to the correct torque.

      Torque Specification: 6 Nm

    • Connect the 8 electrical connectors.
  10. Install the accessory drive belt.

    Refer to: Accessory Drive Belt .

  11. Install the high pressure fuel pump.

    Refer to: High Pressure Fuel Pump .

  12. Install the evaporative emission canister purge valve.

    Refer to: Evaporative Emission Canister Purge Valve .

  13. Install the oil separator and crankcase vent assembly.
  14. Install the fuel injectors.

    Refer to: Fuel Injectors .

  15. Install the Continuous Variable Valve Lift (CVVL) assembly.

    Refer to: Continuous Variable Valve Lift .

  16. Install the upper timing chain.

    Refer to: Upper Timing Chain .

  17. Connect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .
