Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Remove the engine mount to engine bracket nut.

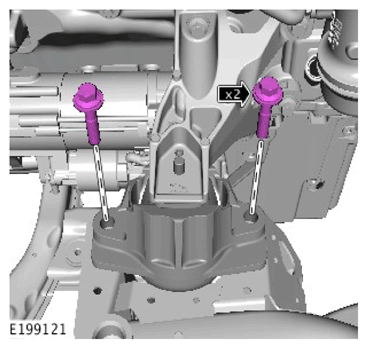

Remove the engine mount to subframe bolts.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting .

General Equipment: Two-post lift
Remove the air deflector.
Refer to: Air Deflector .

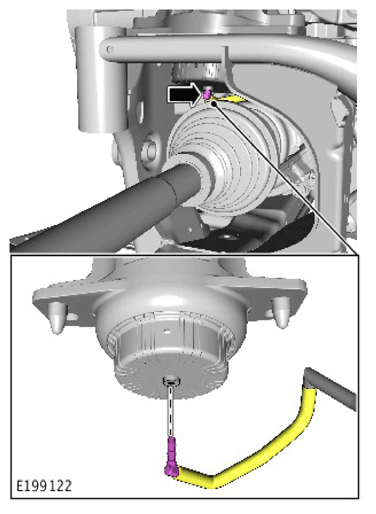

Disconnect the vacuum pipe from the engine mount.
Lower the vehicle on the lift to an appropriate working height.
CAUTION: Care must be taken to avoid damaging the surrounding components.

Using a suitable vehicle jack and wooden block to protect the oil pan, raise the engine off the engine mount.

General Equipment: Trolley jack

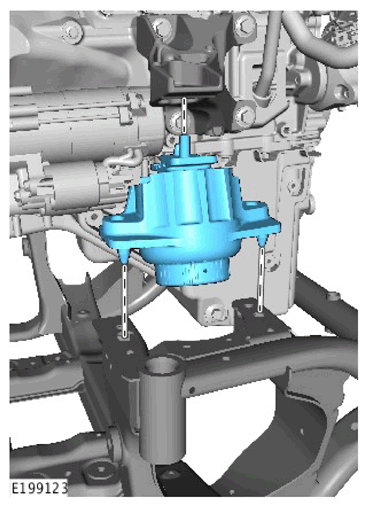

Remove the engine mount from the vehicle.
