Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.

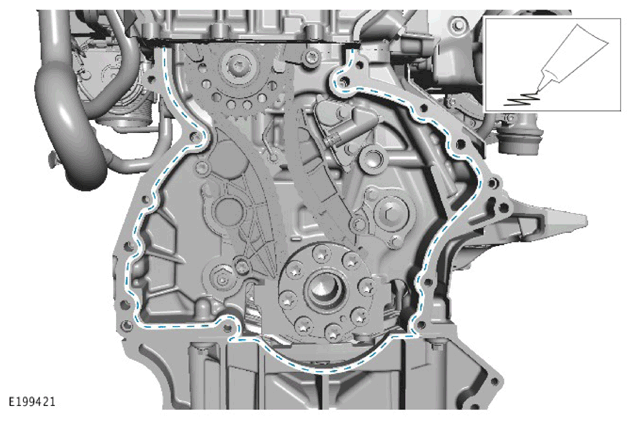

    G11306850

    Apply a 3 mm diameter bead of sealant, to the area shown. Refer to: SPECIFICATIONS .

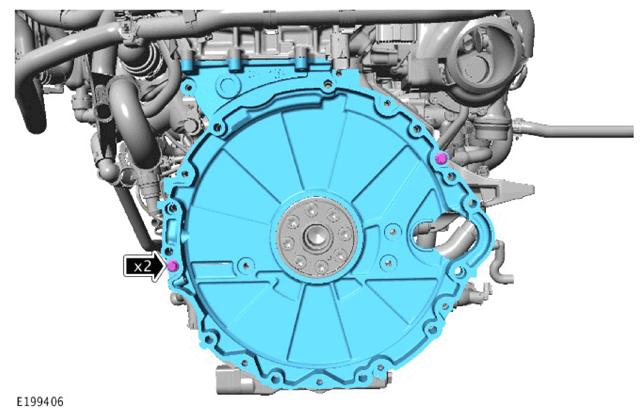

  2. G11306851
    • Take care not to damage the cylinder head gasket when installing the lower timing cover.
    • Make sure the locating dowels are installed correctly.
    • Tighten the 2 bolts to allow the dowels to be pushed into the correct position.

      Torque Specification: 5 Nm

  3. G11306852

    Install 2 more bolts as illustrated and tighten the 4 bolts to the final correct torque.

    Torque Specification: 25 Nm

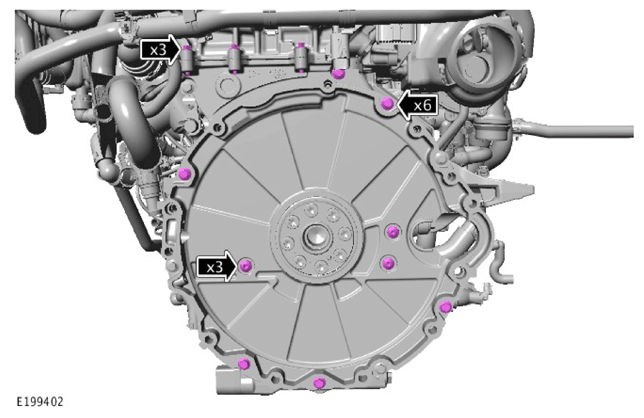

  4. G11306853

    Install the remaining 12 bolts and tighten to the correct torque.

    Torque Specifications:

    M8 x 35 bolts 25 Nm

    M8 x 30 Torx bolts 25 Nm

    M6 x 30 bolts 12 Nm

  5. Install the crankshaft position (CKP) sensor.

    Torque Specification: 8 Nm

  6. Install the coolant pipe bracket.
  7. Install the rear crankshaft oil seal.

    Refer to: Crankshaft Rear Seal .

  8. Connect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  9. Lower the vehicle.
