Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

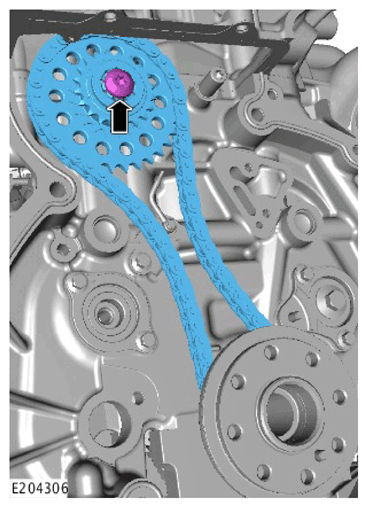

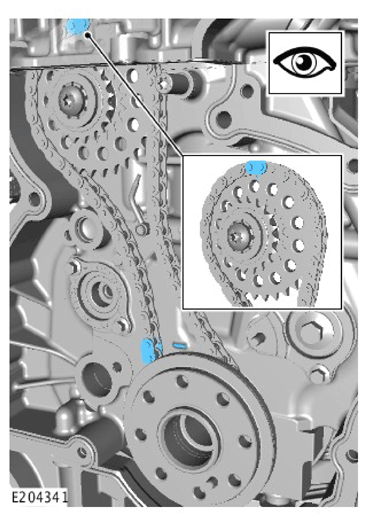

- Install the timing chain onto the idler sprocket.

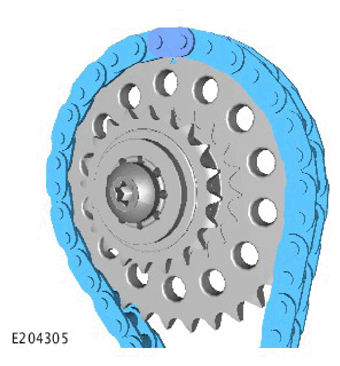

- Make sure that the colored link is aligned as illustrated.
- Install the timing chain and idler sprocket
- Make sure that the timing marks are aligned as illustrated in step 3.
  Torque Specification: 35 Nm
- Make sure that the timing marks are aligned as illustrated

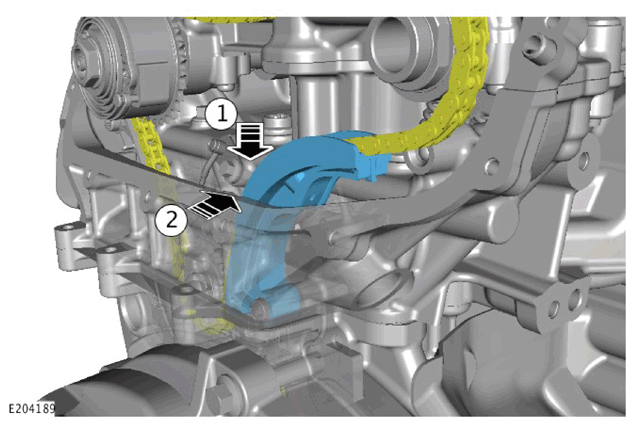

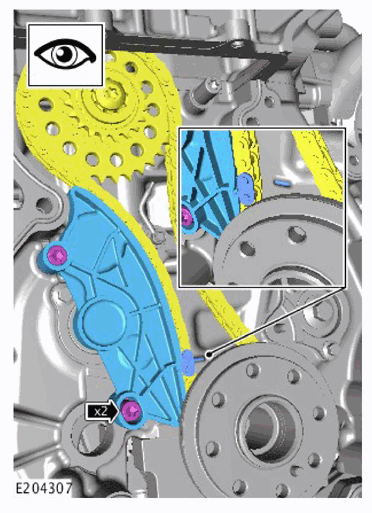

- Install the lower timing chain guide and bolts.
- Make sure that the timing marks remain aligned as illustrated.
  Replace Part: Lower timing chain guide.

  Torque Specification: 25 Nm

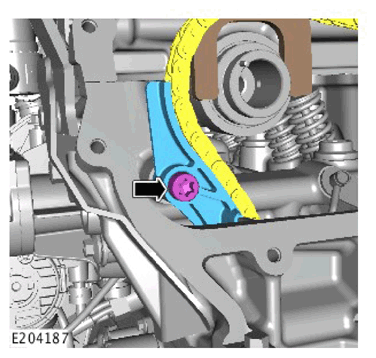

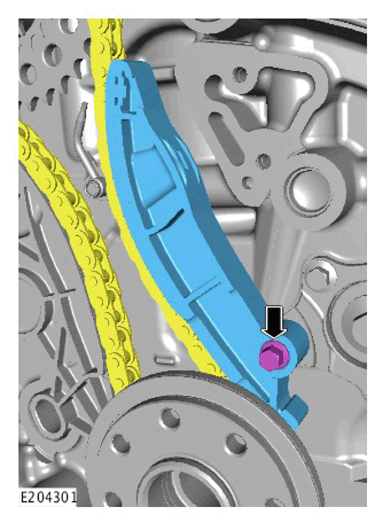

- Install the timing chain tensioner guide and bolt.
  Replace Part: Lower timing chain guide.

  Torque Specification: 11 Nm

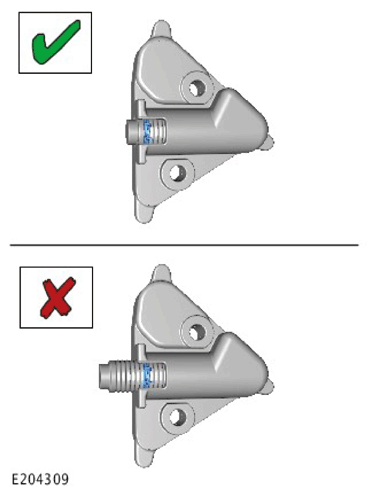

- Make sure that the ratchet clip is on the first groove.

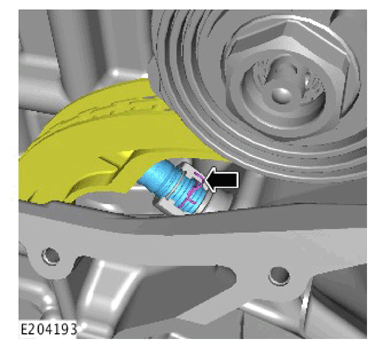

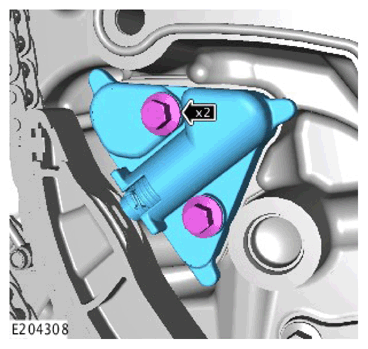

- Install the lower timing chain tensioner.
  Torque Specification: 11 Nm

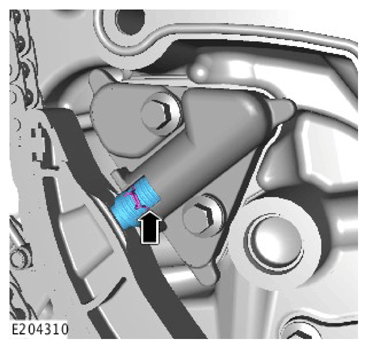

Release the lower timing chain tensioner piston.
NOTE: Maintain tension on the chain to prevent the colored link from disengaging with its sprocket position.

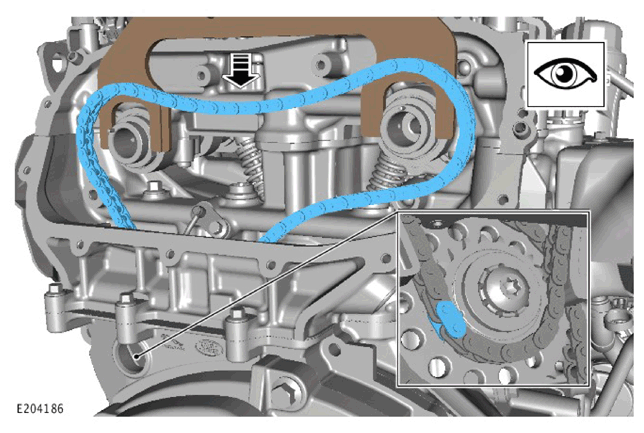

- Install the upper timing chain.
- Make sure that the colored link is aligned as illustrated.
NOTE: Maintain tension on the chain to prevent the colored link from disengaging with its sprocket position.

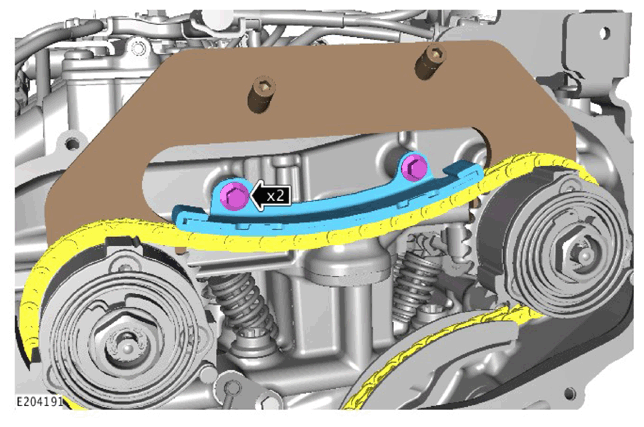

- Install a new left chain guide.
- Torque Specification: 25 Nm
- Renew Part: Upper timing chain guide.
NOTE: Maintain tension on the chain to prevent the colored link from disengaging with its sprocket position.
- Make sure that the component is installed to the previously noted location.

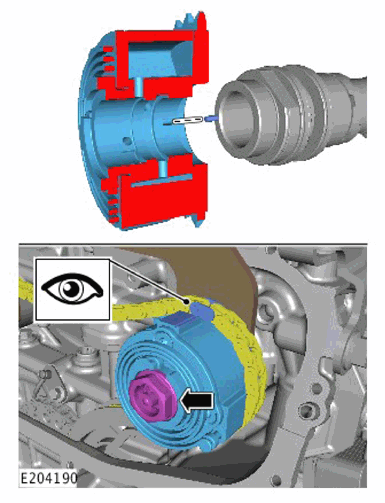

- Install the intake Variable Camshaft Timing (VCT) actuator.

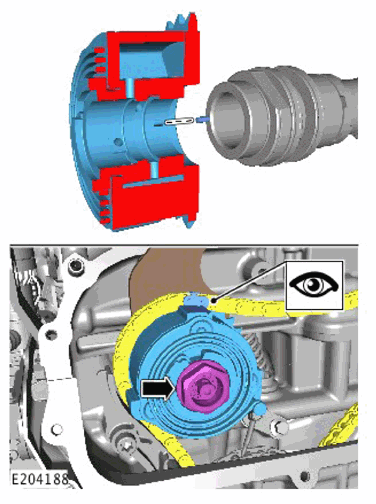

- Make sure that the camshaft locating pin is correctly located into the VCT actuator as illustrated.
- Make sure that the colored link on the timing chain is aligned with the groove on the VCT actuator as illustrated.
  Torque Specifications:

  Stage 1: 10 Nm

  Stage 2: Loosen: 90°
NOTE: Maintain tension on the chain to prevent the colored link from disengaging with its sprocket position.
- Install a new timing chain tensioner guide.
- Renew Part: Upper timing chain guide.
NOTE: Maintain tension on the chain to prevent the colored link from disengaging with its sprocket position.
- Make sure that the component is installed to the previously noted location.
- Install the exhaust Variable Camshaft Timing (VCT) actuator.
- Make sure that the camshaft locating pin is correctly located into the VCT actuator as illustrated.
- Make sure that the colored link on the timing chain is aligned with the groove on the VCT actuator as illustrated.
  Torque Specifications:

  Stage 1: 10 Nm

  Stage 2: Loosen: 90°
NOTE: Maintain tension on the chain to prevent the colored link from disengaging with its sprocket position.
- Install a new timing chain guide.
- Torque Specification: 11 Nm
- Renew Part: Upper timing chain guide.

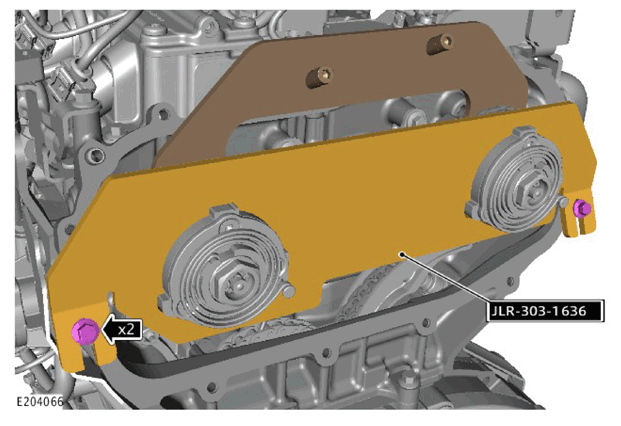

- Install the special tool as illustrated.
- Special Tool(s) : JLR-303-1636
- Torque Specification: 13 Nm
- Make sure that the ratchet clip is on the first groove.
- Install the timing chain tensioner.
- Torque Specification: 55 Nm
CAUTION: Make sure that the timing chain tensioner piston is fully deployed.
- Release the secondary timing chain tensioner piston.

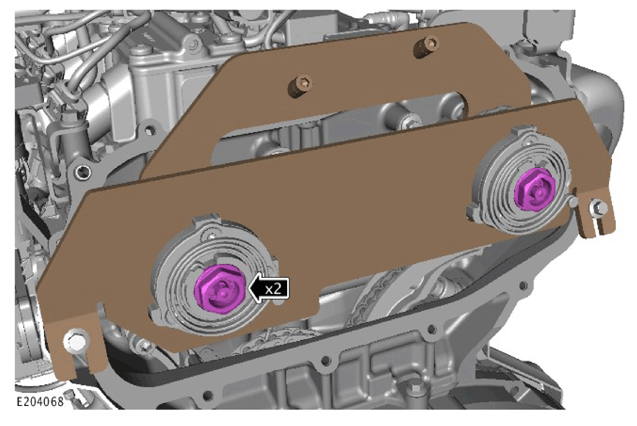

- Fully tighten the VCT bolts.
  Torque Specifications:

  Stage 1: 25 Nm

  Stage 2: 60°
- Remove the special tool.
- Special Tool(s) : JLR-303-1636

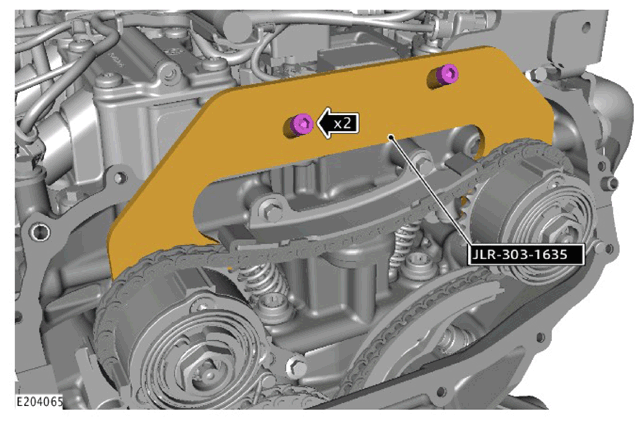

- Remove the special tool.

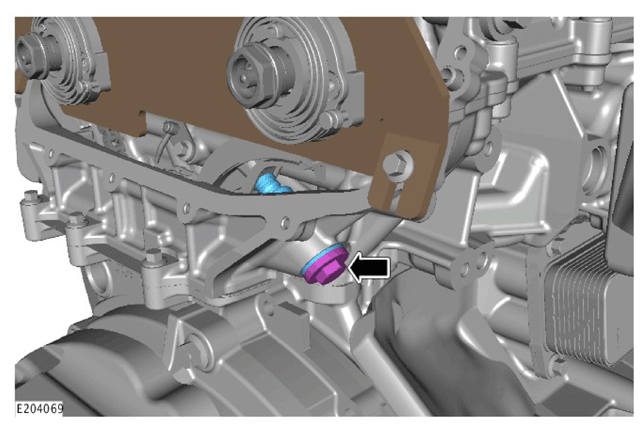

- Remove the special tool.

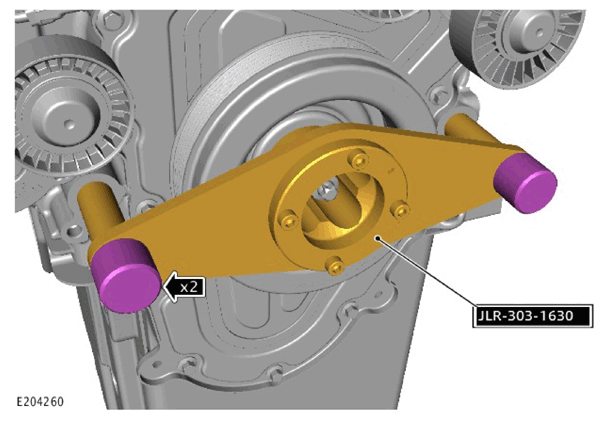

- Special Tool(s) : JLR-303-1630
- Install the charge air radiator bracket.
- Torque Specification: 47 Nm
- Install the 2 nuts.
  Torque Specification: 10 Nm
Install the 3 clips.
Install the 2 fir tree clips.
Install the charge air radiator.
Refer to: Charge Air Cooler .
Install the lower timing cover.
Refer to: Lower Timing Cover .
Install the upper timing cover.
Refer to: Upper Timing Cover .
Connect the startup battery ground cable.
Refer to: Battery Disconnect and Connect .
Install the hood.
Refer to: Hood .
