Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Under no circumstances should the flexplate retaining bolts be inserted into the crankshaft with the flexplate removed. Failure to follow this instruction will result in damage to the engine.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  3. Remove the transmission assembly, refer to Transmission - Ingenium I4 2.0L Petrol AWD or Transmission - Ingenium I4 2.0L Petrol RWD .
  4. CAUTION:
    • Only rotate the crankshaft clockwise.
    • The four locating pegs of the special tool must be installed correctly into the crankshaft pulley.

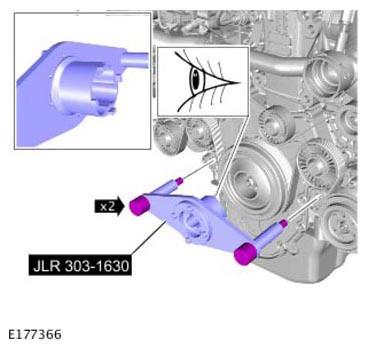

    G11309142
    • Install the special tool onto the crankshaft pulley.

      Special Tool(s): JLR-303-1630

    • Rotate the engine so the special tool can be installed into the cylinder block as illustrated.
  5. CAUTION: Discard the bolts.

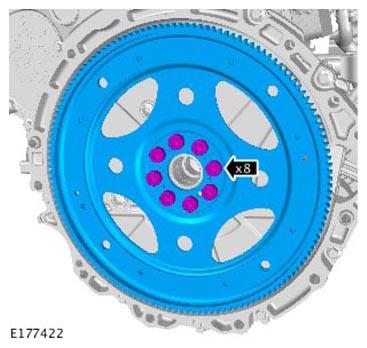

    G11309143
    • Remove the 8 retaining bolts.
    • Remove the flexplate (driveplate).
