Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Under no circumstances should the flexplate retaining bolts be inserted into the crankshaft with the flexplate removed. Failure to follow this instruction will result in damage to the engine.

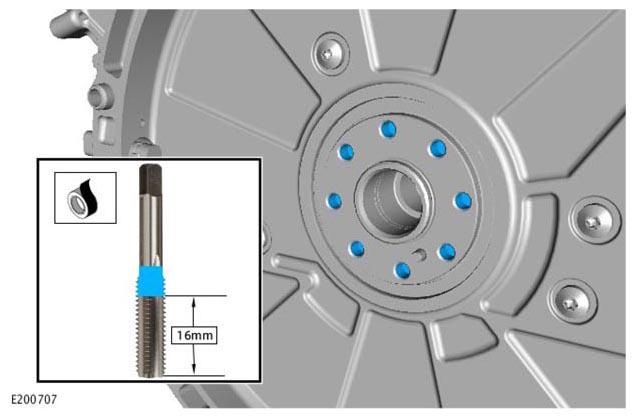

NOTE: Apply tape to the bottoming tap 16mm from the end as a visual guide.
- Using a suitable bottoming tap, clean out the threads.
- Using suitable brake cleaner, remove any foreign material from the threads.
NOTE: The flexplate will only locate in one position.

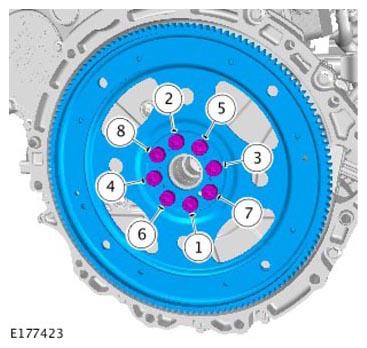

Fig 1: Flexplate Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the flexplate.
- Install the 8 retaining bolts from the driveplate kit.
  Renew Part: Flexplate bolts Quantity: 8

  Torque Specifications:

  Stage 1 30 Nm

  Stage 2 120°
Remove the special tool.

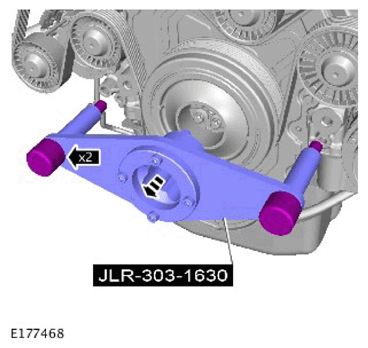

Special Tool(s): JLR-303-1630
Install the transmission assembly.
For more information, refer to: REMOVAL AND INSTALLATION .
Connect the startup battery ground cable.
Refer to: Battery Disconnect and Connect .
