Removal And Installation: Removal
Special Tool(s)
| JLR-303-1633 Lifting Bracket, Engine |
General Equipment
| EQUIPMENT NAME |
|---|
| Hydraulic jib crane |
| Two-post lift |
Procedure
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustration showing certain components removed to provide extra clarity.
- Before working on the fuel system make sure to study the fuel system health and safety section of this manual.
Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting .
General Equipment: Two-post lift
- Drain the cooling system.
Refer to: Cooling System Draining, Filling and Bleeding .
- Disconnect the startup battery ground cable.
Refer to: Battery Disconnect and Connect .
- Remove the hood.
Refer to: Hood .
- Remove the cowl vent screen.
Refer to: Cowl Vent Screen .
- Remove the transmission.
Refer to: Transmission - INGENIUM I4 2.0L Petrol AWD (Vehicles With: 8HP45 8-Speed Automatic Transmission RWD).
Refer to: Transmission - INGENIUM I4 2.0L Petrol RWD (Vehicles With: 8HP45 8-Speed Automatic Transmission RWD).
- Remove both the front halfshafts.
Refer to: Front Halfshaft .
- Remove the charge air radiator.
Refer to: Radiator .
Release the wiring harness from the charge air radiator bracket.
Release the wiring harness from the charge air radiator bracket.
Remove the 2 charge air radiator bracket nuts.
Remove the charge air radiator bracket and spacers.
- Remove the 3 Air Conditioning (A/C) compressor retaining bolts.
- Secure the A/C compressor away from the engine.
Disconnect the block heater wiring harness.
Disconnect the startup battery positive cable from the starter motor junction box.
Remove the left side body brace.
Disconnect the engine management wiring harness from the main engine compartment harness.
-
WARNING: Be prepared to collect escaping fuel.CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. ?When ?disconnected all openings must be sealed.

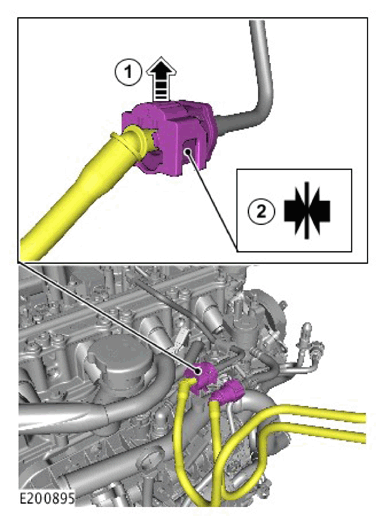

Disconnect the fuel supply and purge tube quick release connections.
Disconnect the coolant top hose from the engine.
Disconnect the 3 coolant hoses from rear of the engine.
Disconnect the 2 coolant hoses from right side of the engine.
Install the special tool.
Torque Specification: 25 Nm
Remove right side engine mount to engine bracket nut.
Remove the left side engine mount to engine bracket nut.

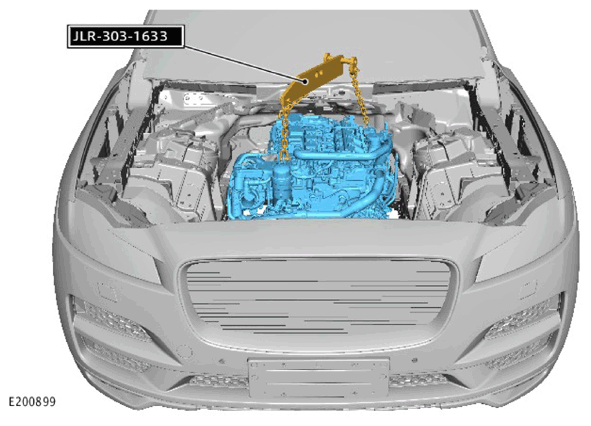

Using the special tool and a suitable hydraulic crane, carefully remove the engine.
Special Tool(s): JLR-303-1633
General Equipment: Hydraulic jib crane
-
NOTE: Do not carry out this step if the engine is removed for access only.
Drain the engine oil.
Refer to: Engine Oil Draining and Filling .
