General Procedures: Check

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift. Refer to: Lifting .
  2. Remove the engine cover.

    Refer to: Engine Cover - Ingenium I4 2.0L Petrol .

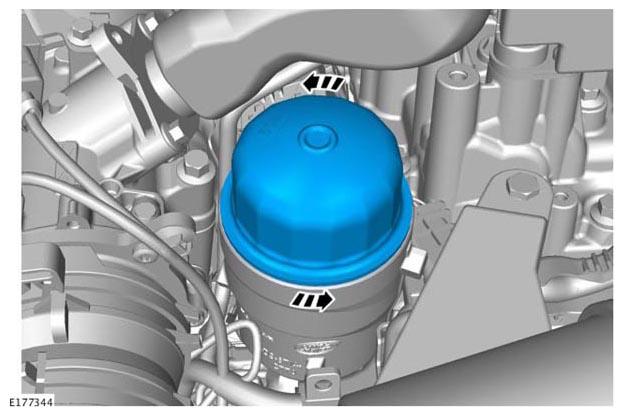

  3. G11308946
    • Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.
    • Allow the engine oil to drain from the oil filter element housing for two minutes.
  4. Remove the engine undershield.

    Refer to: Air Deflector .

  5. WARNING: Be prepared to collect escaping oil.
    CAUTION: Allow at least 10 minutes for the engine oil to drain.

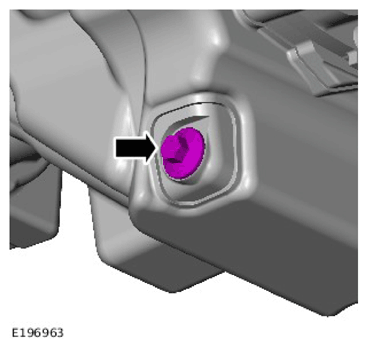

    G11306775
    1. Allow the engine oil to drain.
    2. Discard the oil pan drain plug.
  6. G11306775

    Install a new oil pan drain plug.

    Renew Part: Oil pan drain plug Quantity: 1.

    Torque Specification: 26 Nm

  7. Install the engine undershield.

    Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).

  8. WARNING: Be prepared to collect escaping oil.
    G11308946

    Remove the oil filter element housing.

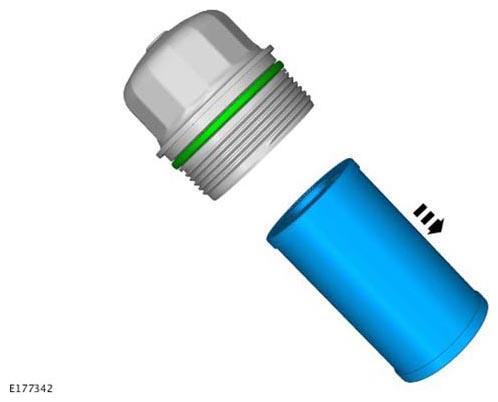

  9. G11308950
    • Remove and discard oil filter element from oil filter housing.
    • Remove and discard the seal.

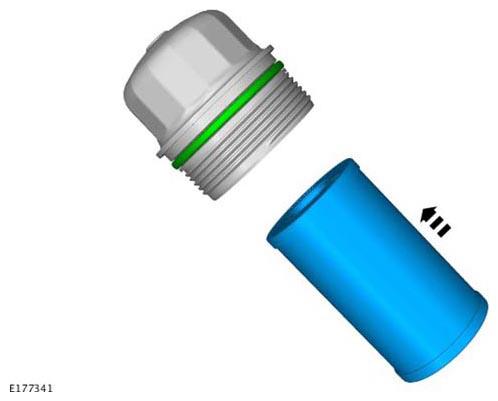

  10. G11308951

    Install a new O-ring seal and oil filter.

    Renew Part: Oil filter and O-ring seal kit Quantity: 1.

  11. G11308952

    Install the oil filter element cap.

    Torque Specification: 25 Nm

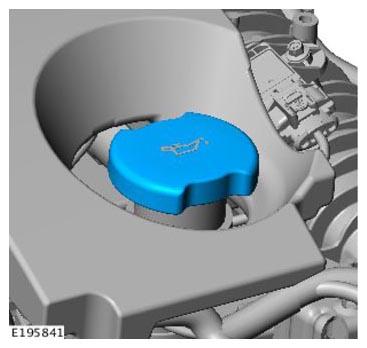

  12. G11308961

    Remove the engine oil filler cap.

  13. Fill the engine with the recommended oil to the correct level.

    Refer to CAPACITIES .

  14. G11308961

    Install the engine oil filler cap.

  15. Check the engine oil level.
  16. NOTE: Make sure that the component is correctly installed.

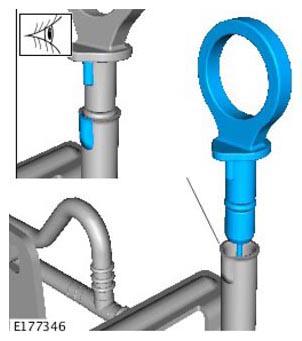

    G11308953
    • Start the engine and allow to idle for 2 minutes.
    • Check for leaks.
    • Stop the engine.
  18. Top up as required.

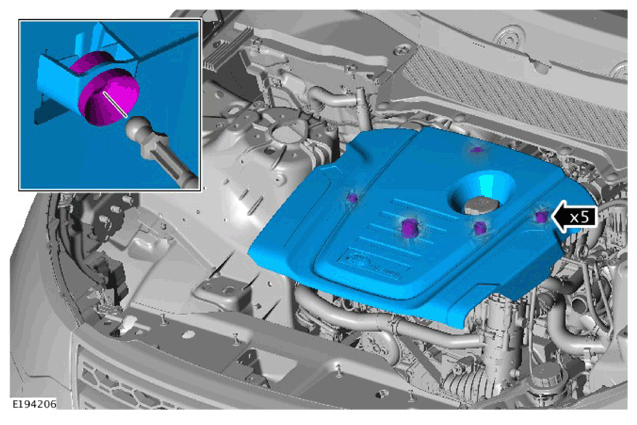

  19. G11306773

Install the engine cover.

Refer to: Engine Cover - Ingenium I4 2.0L Petrol .
