Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  3. Remove the crankshaft pulley.

    Refer to: Crankshaft Pulley .

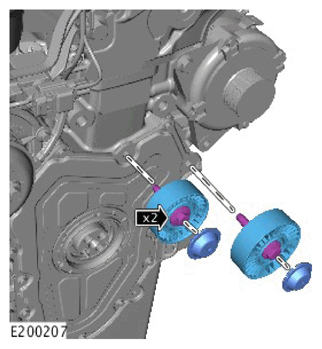

  4. G11306964

    Remove the accessory drive belt idler pulleys.

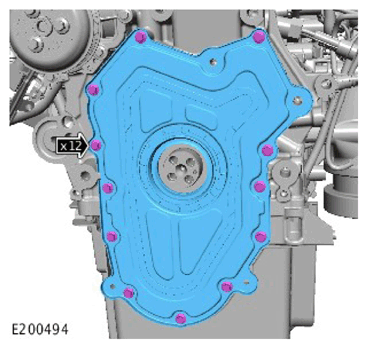

  5. G11306965

    Remove the engine front cover.
