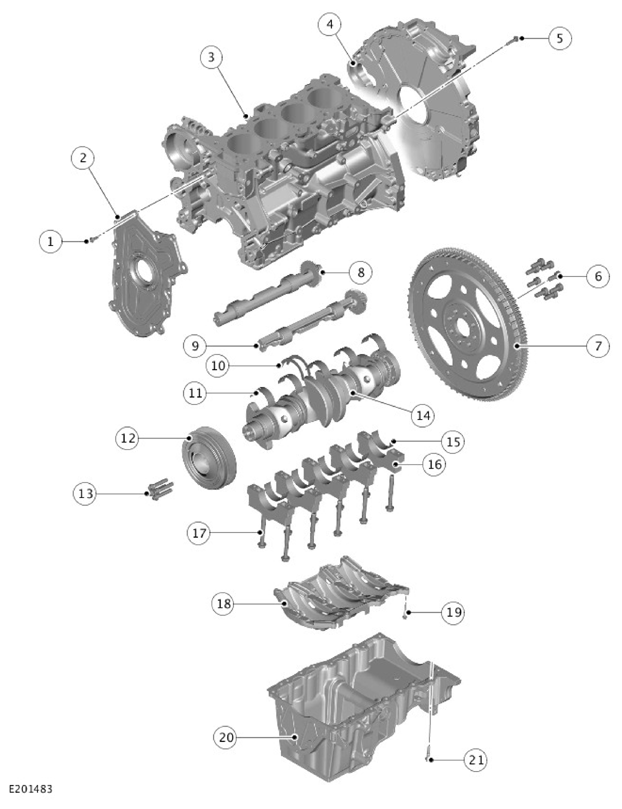

Cylinder Block Components - Vehicles With Rear Wheel Drive
WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Bolt - Engine front cover (14 off) |
| 2 |
Engine front cover |
| 3 |
Cylinder block |
| 4 |
Lower timing chain cover |
| 5 |
Bolt - Lower timing chain cover (16 off) |
| 6 |
Bolt - Drive plate (8 off) |
| 7 |
Drive plate |
| 8 |
Right dynamic balancer |
| 9 |
Left dynamic balancer |
| 10 |
Thrust washer (2 off) |
| 11 |
Upper main bearing (5 off) |
| 12 |
Mass damper |
| 13 |
Bolt - Mass damper (4 off) |
| 14 |
Crankshaft |
| 15 |
Lower main bearing (5 off) |
| 16 |
Main bearing cap (5 off) |
| 17 |
Bolt - Main bearing cap (10 off) |
| 18 |
Windage tray |
| 19 |
Bolt - Windage tray (12 off) |
| 20 |
Oil pan |
| 21 |
Bolt - Oil pan (16 off) |
