Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new Continuous Variable Valve Lift (CVVL) gasket.
  2. CAUTION: Make sure that the mating surfaces are clean and free from debris and foreign material.

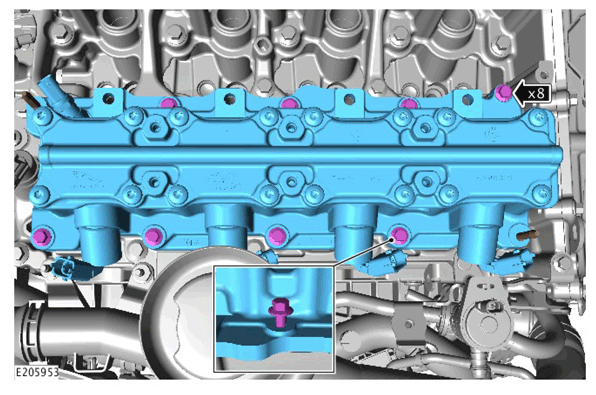

    G11445316
    • Inspect the CVVL brakes and make sure that they are in the reset position.
    • Make sure that the CVVL gasket is fitted in the correct position.
    • Install the CVVL assembly using the special tools to make sure that the CVVL assembly is in the correct position. If a new cylinder head has not been installed then the special tool with the threaded section must be used. If a new cylinder head has been installed then the special tool without the threaded section must be used.
    • Partially install the 8 CVVL assembly bolts as illustrated.

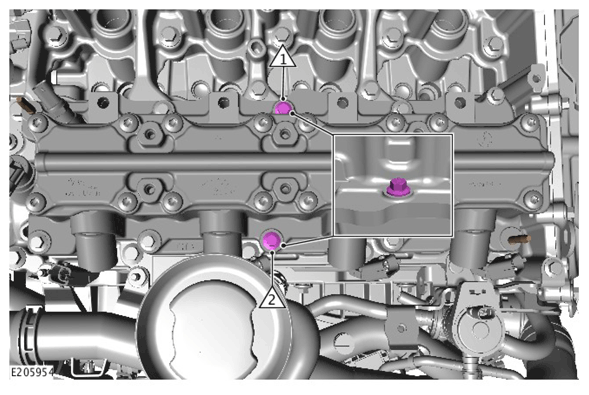

  3. Fig 1: CVVL Assembly Bolts Tightening Sequence
    G11445317Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 2 bolts in the indicated sequence until contact between the bolt head and the CVVL has been made, and then further tighten the 2 bolts 2 full revolutions.

  4. Fig 2: CVVL Assembly Bolts Tightening Sequence
    G11445317Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 2 bolts in the indicated sequence.

    Torque: 6 Nm

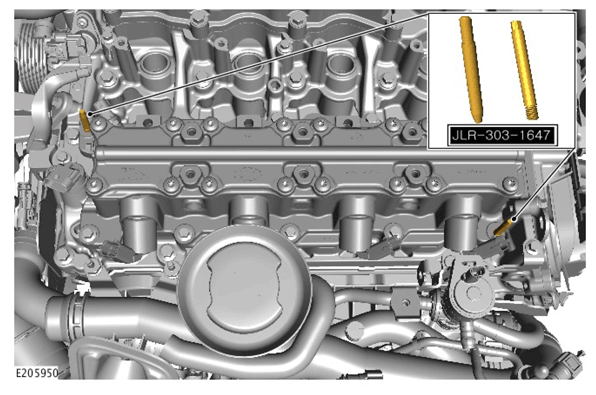

  5. G11445312

    Remove the special tools from the CVVL assembly.

    Special Tool(s):  JLR-303-1647

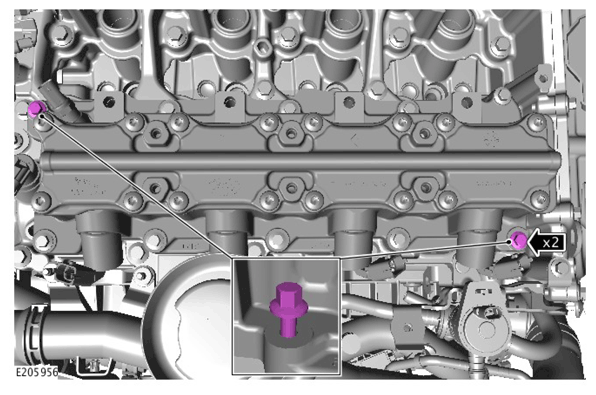

  6. G11445320

    Partially install 2 bolts into the CVVL where the special tool was previously located.

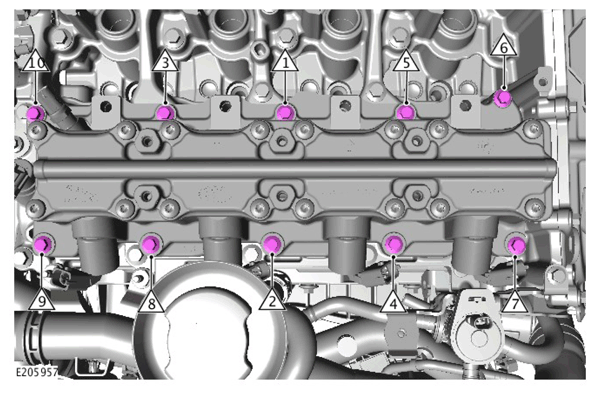

  7. Fig 3: CVVL Assembly Bolts Tightening Sequence
    G11445321Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 10 CVVL bolts to the correct torque the indicated sequence.

    Torque: 12 Nm

  8. Install the fuel injectors.

    Refer to: Fuel Injectors .

  9. Connect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  10. Carry out CVVL software calibration using the approved diagnostic equipment.

    General Equipment:  Jaguar approved diagnostic tool

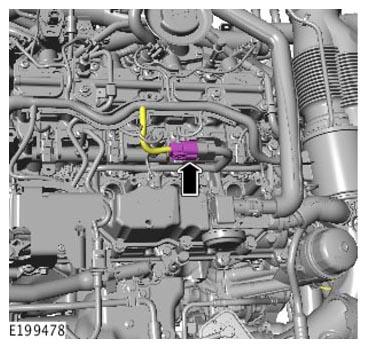

  11. G11308894

    Disconnect the electrical connector for the fuel injector wiring harness.

    • Crank the engine for a 10 second interval.
    • Allow the starter motor to cool for 5 seconds.
    • Repeat this step 4 times until suitable oil pressure is obtained within the CVVL assembly to allow the vehicle to start.
  13. Connect the electrical connector for the fuel injector wiring harness.
  14. Using the approved diagnostic equipment, read and clear any diagnostics trouble codes (DTCs).

    General Equipment:  Jaguar approved diagnostic tool

  15. CAUTION: Make sure this step is carried out, as failure to observe this instruction may result in damage to the engine or the CVVL assembly.

    Run the engine at idle for 1 minute to allow the correct oil pressure to be obtained within the CVVL assembly.
