Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Do not touch the tip of the sensor.
    • Lubricate the threaded section of the sensor with a small amount of clean engine oil.
    • Install the Continuous Variable Valve Lift (CVVL) oil temperature sensor.

      Torque Specification: 18 Nm

    • Connect the CVVL electrical connector.

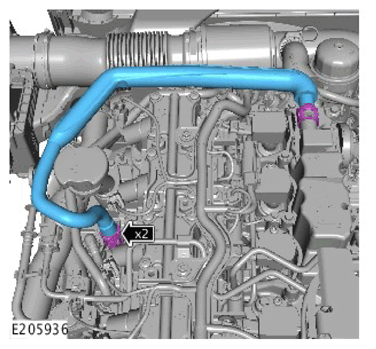

  2. G11307036

    Install the air intake breather pipe.

  3. Install the engine cover.

    Refer to: Engine Cover - Ingenium I4 2.0L Petrol .
