Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustration showing certain components removed to provide extra clarity.

All vehicles

  1. Before working on the fuel system make sure to study the fuel system health and safety section of this manual.

    Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

    General Equipment:  Two-post lift

  3. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  4. Remove the front left fender splash shield.

    Refer to: Fender Splash Shield .

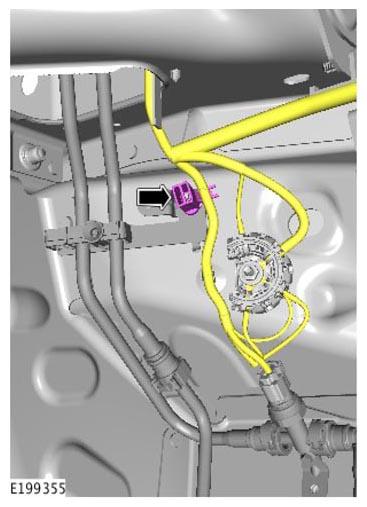

  5. Release the wiring harness clip from the lower fuel supply line mounting bracket.
    G11314853

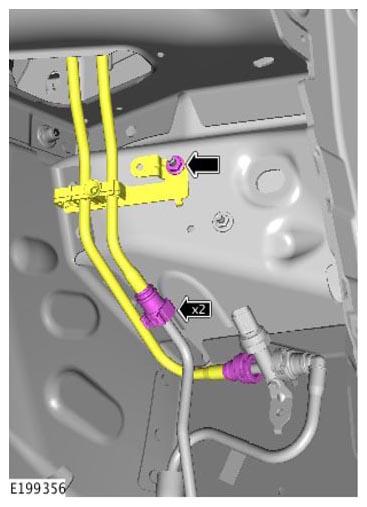

  6. Remove the lower fuel supply line mounting bracket nut and disconnect the 2 fuel supply line connectors from the underbody fuel lines.
    WARNING: Be prepared to collect escaping fuel.
    CAUTION: Make sure that all openings are sealed. Use new blanking caps.
    G11314854
  7. Lower the vehicle on the lift to an appropriate working height.
  8. Remove the windshield wiper pivot arms.

    Refer to: Windshield Wiper Pivot Arm .

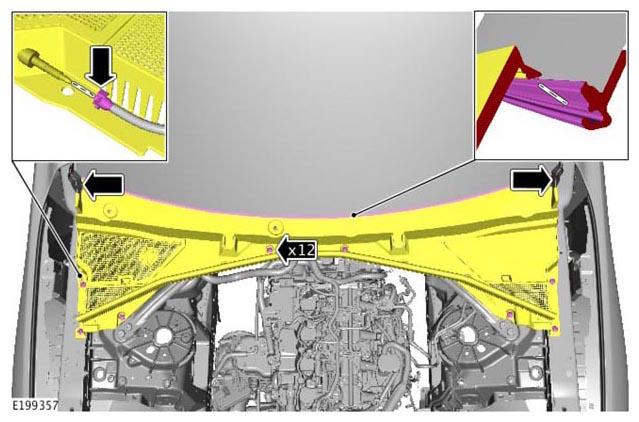

  9. Release the cowl vent screen.
    G11314855

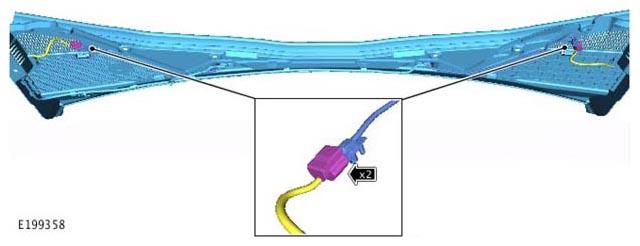

  10. Disconnect the 2 electrical connectors and remove the cowl vent screen.
    G11314856

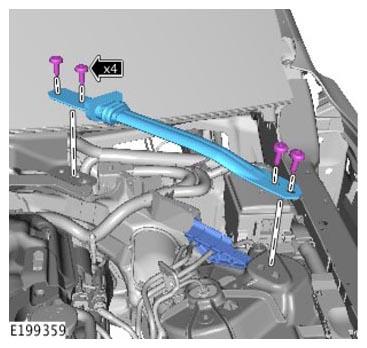

  11. Remove the body brace and fuel supply line rubber mounting.
    G11314857

    Right-hand drive vehicles

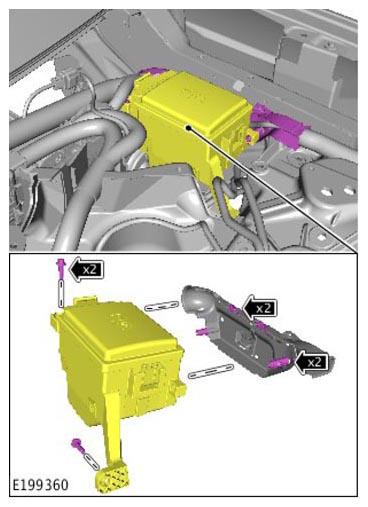

  12. Release and reposition the fuse box.
    G11314858

    All vehicles

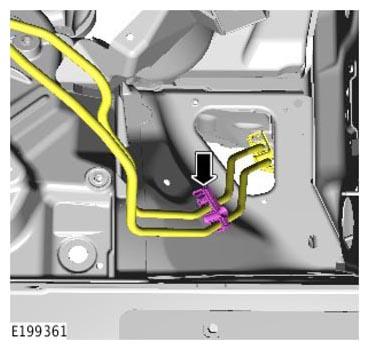

  13. Release the fuel supply line to body clip.
    G11314859

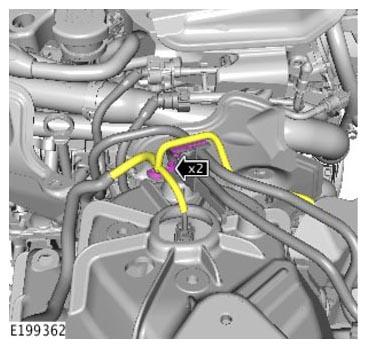

  14. Release the 2 wiring harness clips from the upper fuel supply line mounting bracket.
    G11314860

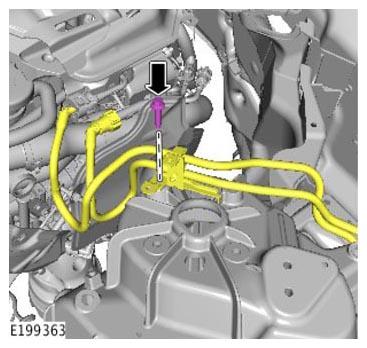

  15. Remove the upper fuel supply line mounting bracket to body bolt.
    G11314861

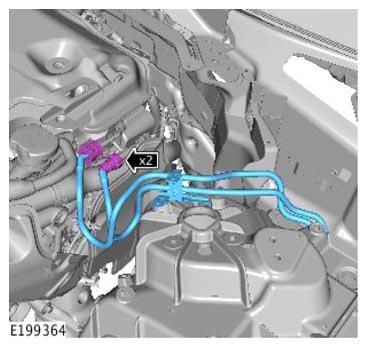

  16. Disconnect the 2 fuel supply line connectors from the engine and remove the fuel supply line from the vehicle.
    WARNING: Be prepared to collect escaping fuel.
    CAUTION: Make sure that all openings are sealed. Use new blanking caps.
    G11314862
