General Procedures: Check

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Deflector .

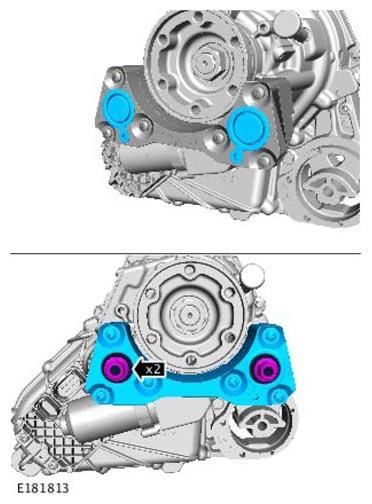

  3. G11314244
  4. G11314245
  5. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Discard the sealing washer.

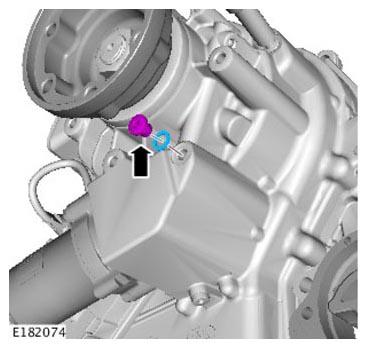

    G11314246
  6. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    G11314247
