Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 3.5
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 3.1
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER 3.3
G11344346
86.75.50 FRONT SEAT TRACK MOTOR - RENEW ALL DERIVATIVES 1.6
G11423103
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 2WD 6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 7
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 4WD 5.9
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 2WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 4WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 2WD 3.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 4WD 4.3
G00564318
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 6.3
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 6.7
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.2
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 5.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD (No Illustration) 6
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 2WD 4.1
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 4WD 4.5
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126) 3.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), 4WD 4.5
G11442528

General Equipment

EQUIPMENT NAME
Transmission jack

Part(s)

STEP PART NAME QUANTITY
Step 18 Torque converter bolts 4
Step 25 Transmission fluid cooler tubes to transmission O-ring seals 1

Procedure

CAUTION: New transmission assemblies are supplied pre-filled with transmission fluid.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. G11313993

    Remove the 3 bolts and the toque converter transportation brace.

  2. G11313994

    Make sure the torque converter is fitted to the specification illustrated.

  3. G11313929

    Install the mounting.

  4. G11313903

    Install the transmission plug.

  5. G11313902

    Install the emergency park release lever and the nut

    Torque Specification: 12 Nm

  6. G11313901

    Install the transmission covers.

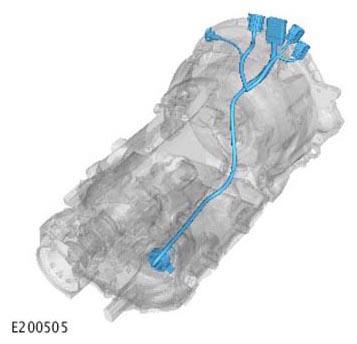

  7. G11313925

    Install the wiring harness.

  8. CAUTION: Care must be taken not to damage the component.
    NOTE: Make sure the electrical connector is correctly secured.

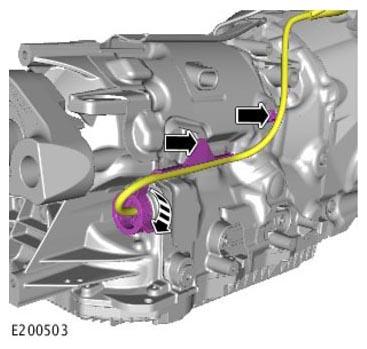

    G11314030

    connect the plug and install clips.

  9. G11313896

    Install the heatshield.

    Torque Specification: 9 Nm

  10. G11313895

    Install the exhaust bracket.

    Torque Specification: 25 Nm

  11. CAUTION:
    • Make sure the seal is installed correctly.
    • To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.
    NOTE: Remove and discard all blanking caps.
    G11313894

    Install the transmission breather.

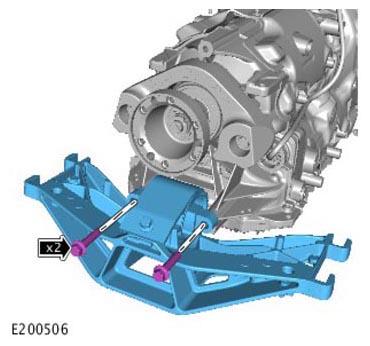

  12. G11313920

    Install the transfer case mounting.

    Torque Specification: 48 Nm

  13. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Remove and discard the tie straps securing the torque converter.

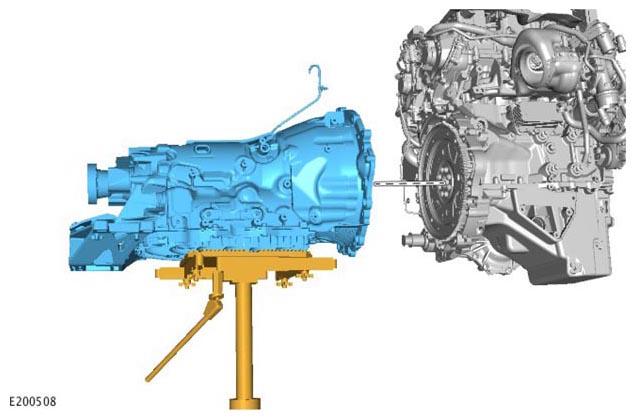

    G11313919

    Install the transmission.

  14. G11313891

    Install the bolts.

    Torque Specification: 47.5 Nm

  15. G11313890

    Install the bolts.

    Torque Specification: 47.5 Nm

  16. G11313889

    Install the bolts in the correct orientation.

    Torque Specification: 47.5 Nm

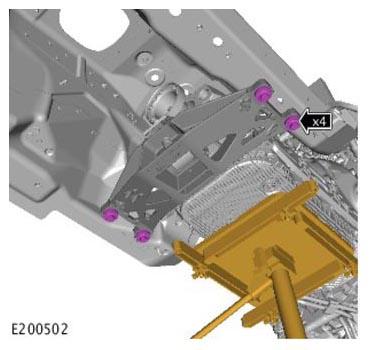

  17. G11313915
    1. Using a suitable stand, support the transmission.

      General Equipment:  Transmission jack

    1. Install the 4 bolts.

      Torque Specification: 45 Nm

  18. NOTE: Only turn the engine in the normal direction of rotation.
    G11313887

    Install the new torque converter bolts.

    Renew Part: Torque converter bolts.

    Torque Specification: 70 Nm

  19. G11313886

    Install the wiring harness bracket.

    Torque Specification: 10 Nm

  20. G11313884

    Connect the wiring harness and the clips.

  21. G11313885

    Install the clips.

  22. G11313883

    connect the electrical connector and install the bolt.

    Torque Specification: 10 Nm

  23. G11313882

    Secure the clips.

  24. G11313881

    Connect the emergency park release lever.

    Torque Specification: 11 Nm

  25. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that new O-ring seals are installed.
    NOTE: Remove and discard the blanking caps.
    G11313880

    Install the transmission cooler pipes.

    Renew Part: Transmission fluid cooler tubes to transmission O-ring seals.

    Torque Specification: 22 Nm

  26. G11313879

    Install the bolt.

    Torque Specification: 22 Nm

  27. Install the driveshaft.

    Refer to: Driveshaft - INGENIUM I4 2.0L Petrol .

  28. Install the starter motor.

    Refer to: Starter Motor .

  29. G11313877

    Remove the engine support beam.

  30. G11313876

    Install the clip.

  31. Install the cowl vent screen.

    Refer to: Cowl Vent Screen .

  32. Install the engine cover.

    Refer to: Engine Cover - INGENIUM I4 2.0L Petrol .

  33. Connect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  34. Check the transmission fluid level.

    Refer to: Transmission Fluid Level Check .
