Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  2. Drain the coolant system.

    Refer to: Cooling System Draining and Vacuum Filling .

  3. Remove the accessory drive belt.

    Refer to: Accessory Drive Belt .

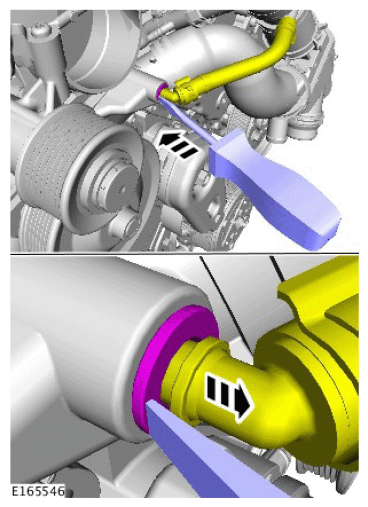

  4. Using a suitable tool remove the coolant hose.
    G11287975

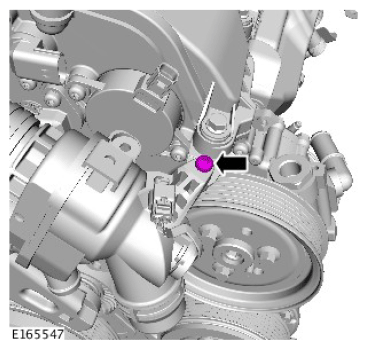

  5. Remove the thermostat bolt.
    G11287976

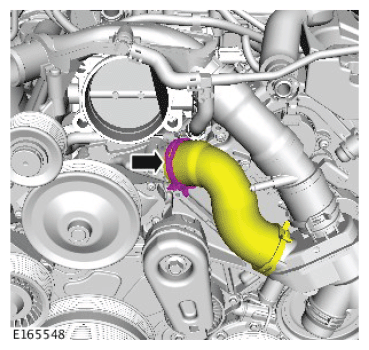

  6. Release the clip and the coolant hose from the coolant pump.
    CAUTION: Be prepared to collect escaping coolant.
    G11287977

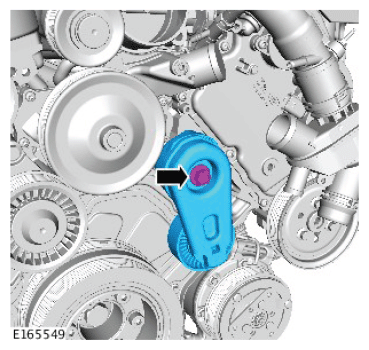

  7. Remove the accessory drive belt tensioner.
    G11287978
  8. Remove the coolant pump and discard the seals.
    WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.
    CAUTION: Engine coolant will damage the paint finished surfaces. If spilled, immediately remove the coolant and clean the area with water.
    G11287865

    Torque Specification: 12 Nm
