Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting .
- Remove the air deflector.
Refer to: Air Deflector .
- Partially drain the cooling system.
Refer to: Cooling System Partial Draining and Vacuum Filling .
- Remove the front right wheel.
Refer to: Wheel and Tire .

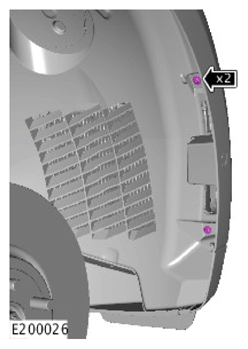

Remove the 2 screws.

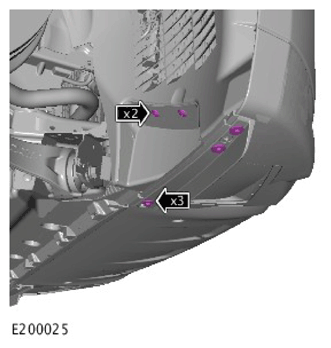

Remove the 3 bolts and 2 screws.

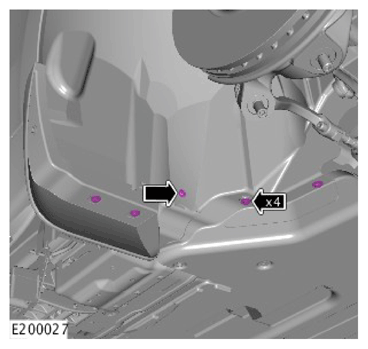

- Remove the 4 bolts.
- Remove the screw.
- Remove the 3 clips.

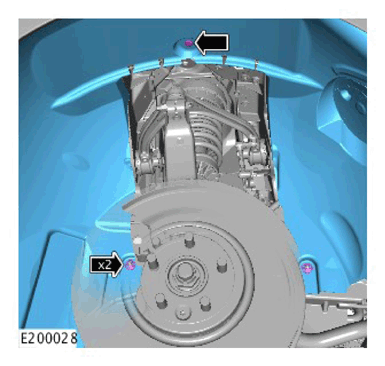

- Remove the wheel arch liner.
-
CAUTION: Be prepared to collect escaping coolant.
Disconnect the coolant hose.
-
CAUTION: Be prepared to collect escaping coolant.
Disconnect the coolant hose.

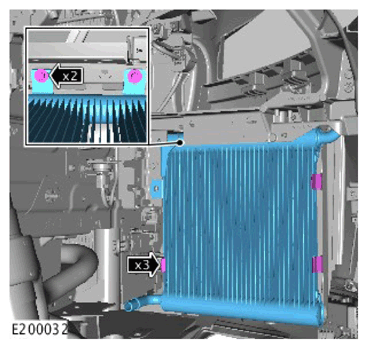

Remove the auxiliary radiator bracket bolt.
Remove the auxiliary radiator.
