Rear Section
WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

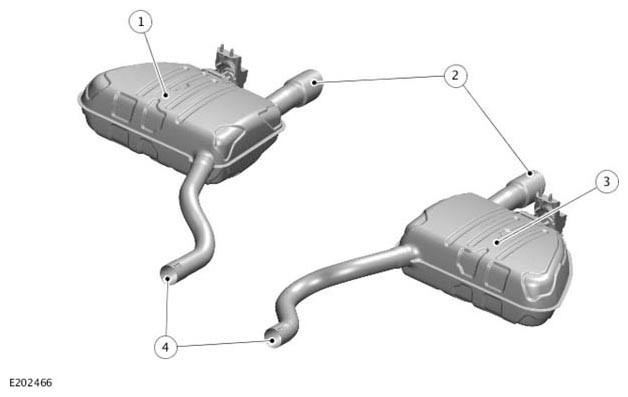

| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear right silencer |
| 2 | Outlet pipe (2 off) |
| 3 | Rear left silencer |
| 4 | Inlet pipe (2 off) |
The rear section is divided into right and left silencer assemblies and the exhaust gases are expelled from each rear silencer via a single outlet pipe.
Each rear silencer is supported by a mounting rubber which connects the hanger bracket welded to the rear silencer to the hanger bracket bolted to the vehicle underbody.
