Center Section
WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

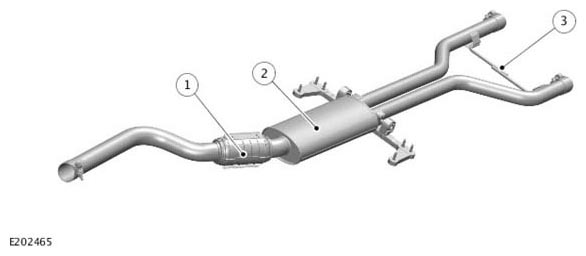

| ITEM | DESCRIPTION |
|---|---|
| 1 | Flexible coupling |
| 2 | Center silencer |
| 3 | Support bracket |
The center section comprises of one inlet and two outlet pipes, which incorporate a flexible coupling and a center silencer.
The inlet pipe of the center section is secured to the front section outlet pipe with a clamp.
The center section has two hanger brackets which are welded to the exhaust system, and supports the center section on two mounting rubber. The mounting rubbers are connected to the hanger brackets, which are bolted to a cross brace. The cross brace is installed to the underside of the vehicle by six bolts. A support bracket is welded to the exhaust system to increase rigidity.
