Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from airtight containers. Do not mix brands of brake fluid as they may not be compatible.

CAUTION: If brake fluid is spilt on the paint work, the affected area must be immediately washed down with cold water.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.
Left hand drive illustration shown, right hand drive is similar.

Raise and support the vehicle on a suitable 2 post lift. Refer to: JACKING AND LIFTING (Description and Operation).
For additional information, refer to: Brake Fluid Reservoir (Removal and Installation).

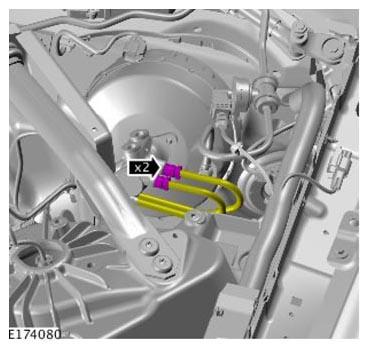

Remove the brake pipes.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.

Torque Specification: 17 Nm

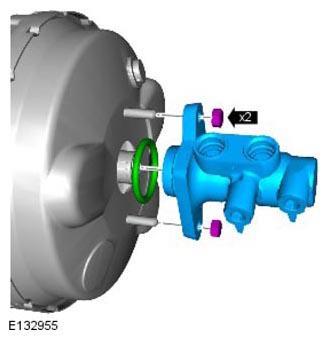

- Remove and discard the nuts.
  Renew Part: Brake master cylinder nuts Quantity: 1.

  Torque Specification: 25 Nm
- Remove and discard the seal.
  Renew Part: Brake master cylinder seal(s) Quantity: 1.
