Wheel And Tire: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. CAUTION: Using power tools may result in damage to the wheel nuts. Make sure the wheel nuts are released using hand tools only.

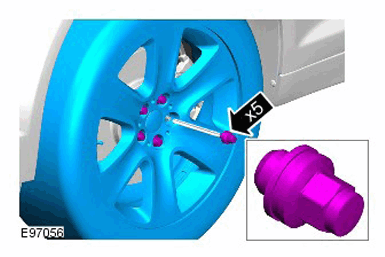

G11283757

Remove the wheel and tire.

Torque Specification: 125 Nm
