Wheel And Tire: Installation

  1. CAUTION:
    • Apply a small amount of grease to the hub and wheel mating surfaces before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.
    • Using power tools may result in damage to the wheel nuts. Make sure the wheel nuts are installed using hand tools only.

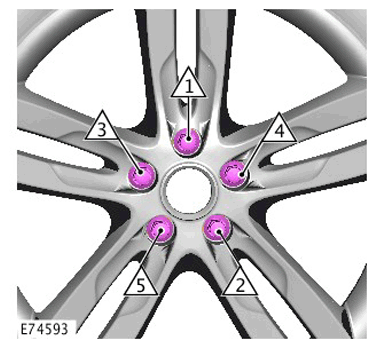

    G11283975

    Install the wheel and tire.
