Tire Pressure Monitoring System (TPMS) Module: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Switch the igntion off.
  2. Remove the right-hand front seat.

    Refer to: Front Seat (Removal and Installation).

  3. Refer to: B-Pillar Lower Trim Panel (Removal and Installation).
  4. G11283970

    Detach and reposition the floor covering.

  5. G11283971

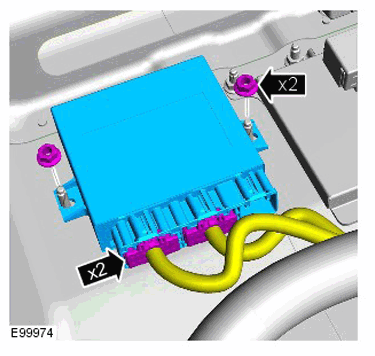

  6. G11283972
