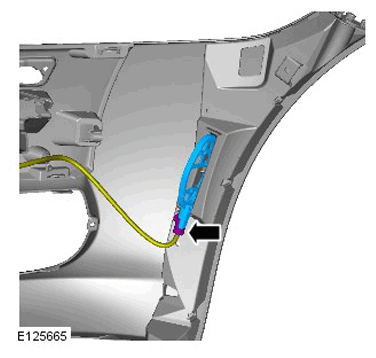

Tire Pressure Monitoring System (TPMS) Front Antenna: Removal
NOTE:
- Removal steps in this procedure may contain installation details.
- The ignition must be switched off.
- RH illustration shown, LH is similar.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Remove the front wheel and tire.
Refer to: Wheel And Tire (Removal and Installation).
Torque Specification: 1.5 Nm
-

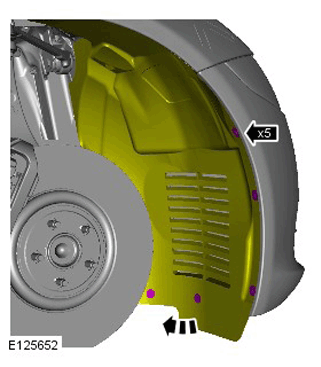

NOTE: Component illustrated, removed for clarity.
