Tire Low Pressure Sensor: Installation

  1. CAUTION:
    • Make sure that the seal is correctly located.
    • Make sure that new components are installed.

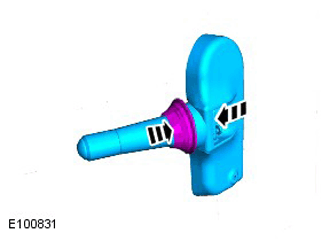

    G11283964

    Install the washer and seal, making sure the valve remains pressed fully onto its seat.

  2. WARNING:
    • Make sure that any corrosion or dirt is removed from the mating surfaces.
    • Make sure that a new tire valve, valve core, seal, washer, cap and retaining nut is installed.
    CAUTION:
    • Use lint free cloth.
    • Only use moderate force when installing the sensor.
    NOTE: Only tighten the nut finger tight at this stage.

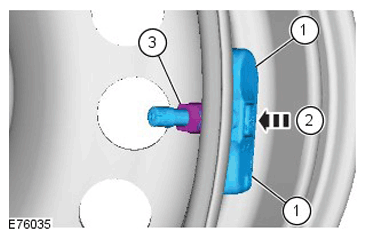

G11283965
  1. Install the tire low pressure sensor and support the sensor body in position.
  1. Support the back of the valve stem in order to prevent rotation to the tire low pressure sensor body.
  1. Gently push the nut towards the center of the wheel.

    Tighten the nut.

    Torque Specification: 8 Nm

  1. Install the tire and balance the wheel.
  2. Refer to: Wheel And Tire  (Installation).
  3. WARNING: Make sure to support the vehicle with axle stands.

    Lower the vehicle.
