Wheels & Tires -- XJ/X351
>>
Wheels And Tires
>>
Description And Operation
>>

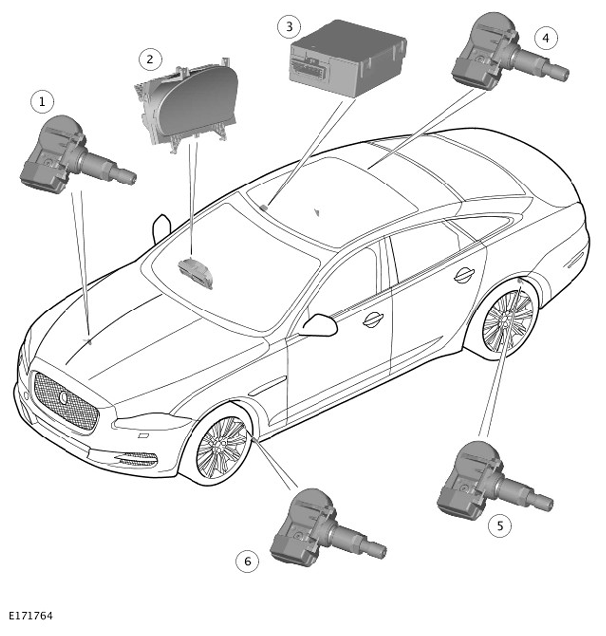

COMPONENT LOCATION - Wheel And Tire
COMPONENT LOCATION - Wheel And Tire
ITEM
DESCRIPTION
1
Right front Tire pressure sensor
2
Instrument Cluster (IC)
3
Tire Pressure Monitoring System Control Module (TPMSCM)
4
Right rear Tire pressure sensor
5
Left rear Tire pressure sensor
6
Left front Tire pressure sensor
