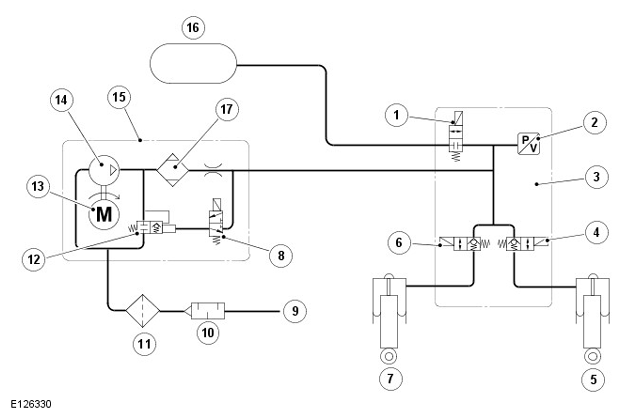

Air Suspension System Schematic
| ITEM | DESCRIPTION |
|---|---|
| 1 | Reservoir valve |
| 2 | Air pressure sensor |
| 3 | Air suspension valve block |
| 4 | Right air spring valve |
| 5 | Right air spring |
| 6 | Left air spring valve |
| 7 | Left air spring |
| 8 | Pilot exhaust valve |
| 9 | Inlet/Exhaust |
| 10 | Air suspension silencer |
| 11 | Air suspension air filter |
| 12 | Main exhaust valve |
| 13 | Electric motor |
| 14 | Air compressor |
| 15 | Suspension air supply unit |
| 16 | Air reservoir |
| 17 | Air suspension air drier |
