Integrated Suspension Control Module (G1715849): Removal

CAUTION: Calibration of the suspension system must be carried out after the following components have been replaced: suspension control module, suspension height sensor, suspension components and body panels incorporating suspension fixing points.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (414-01, General Procedures).
  2. Refer to: Loadspace Trim Panel RH (501-05, Removal and Installation).

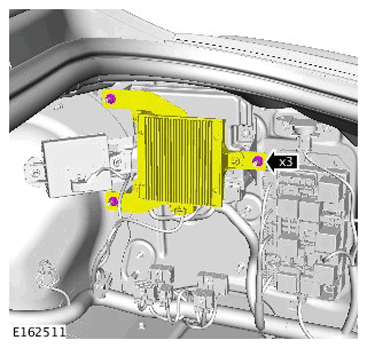

  3. G11284015

    Torque Specification: 7 Nm

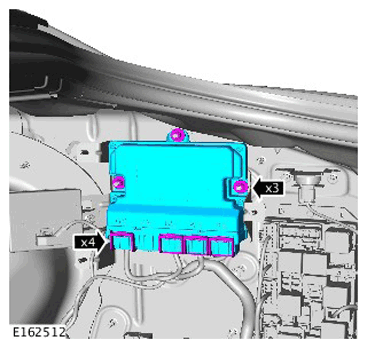

  4. G11284016

Torque Specification: 7 Nm
