Front Suspension Vertical Accelerometer: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Fender Splash Shield (501-02, Removal and Installation).

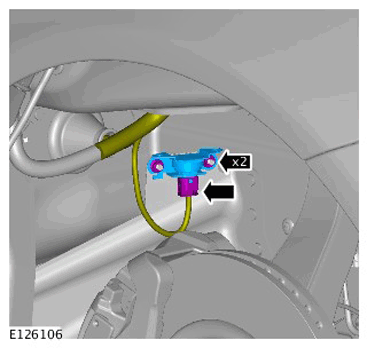

  3. CAUTION: The accelerometer is an extremely delicate component and can easily be rendered unserviceable. Never use an accelerometer which has been dropped or subjected to mistreatment of any type.
    G11284006

    Torque Specification: 5 Nm
