Air Suspension Solenoid Valve Block (G1311862): Removal

WARNING: The air suspension is pressurised. Make sure dirt or grease does not enter the system. Always wear hand, eye and ear safety standard protection when working on the system.

CAUTION: Do not depressurise the air suspension system before raising the vehicle.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Air Suspension System Depressurize and Pressurize (General Procedures).
Refer to: LOADSPACE TRIM PANEL RH (Removal and Installation) .
CAUTION: Using a suitable blanking plug, blank off the end of the air pipe to prevent dirt ingress.

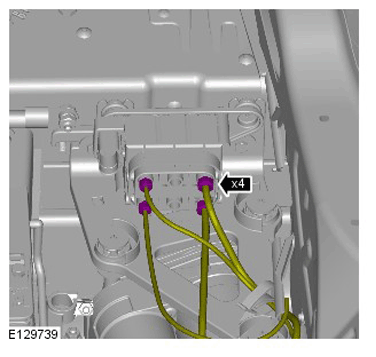

NOTE: Note the orientation of the colour coded air lines prior to removal

NOTE: Discard the air line connectors.

Refer to: Air Line Connector (General Procedures).

Torque Specifications:

4 mm pipe 2 Nm

6 mm pipe 3.5 Nm
