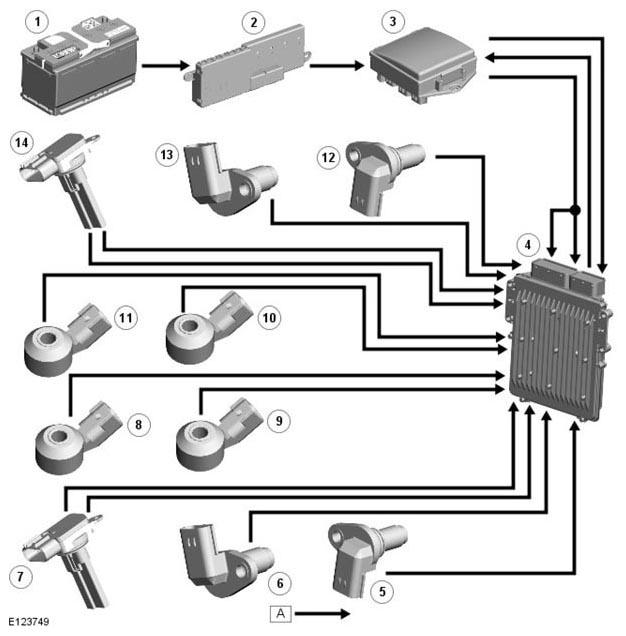

Control Diagram Sheet 1 Of 2
WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D = High speed CAN (controller area network) bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) (250 A megafuse) |
| 3 | EJB (engine junction box) (main relay) |
| 4 | ECM |
| 5 | LH (left hand) intake CMP sensor |
| 6 | LH exhaust CMP sensor |
| 7 | LH MAFT sensor |
| 8 | LH front knock sensor |
| 9 | LH rear knock sensor |
| 10 | RH (right hand) rear knock sensor |
| 11 | RH front knock sensor |
| 12 | RH intake CMP sensor |
| 13 | RH exhaust CMP sensor |
| 14 | RH MAFT sensor |
