Engine (G1271908): Removal

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
G11285508
 303-1435
Engine Lifting Brackets Rear
G11285509
 303-1436
Engine Lifting Bracket Front
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  1. Refer to: BATTERY DISCONNECT AND CONNECT .
  2. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816935) .
  3. Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
  4. Refer to: COWL VENT SCREEN .
  5. Secure the hood in the service position.
  6. Refer to: AIR CLEANER LH (G1271879) .
  7. Refer to: AIR CLEANER OUTLET PIPE RH (G1189206) .
  8. G11285086
  9. G11285511
  10. G11285512
  11. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
    CAUTION: Be prepared to collect escaping fuel.
    G11285091
  12. CAUTION: Be prepared to collect escaping fluids.
    G11284659
  13. CAUTION: Be prepared to collect escaping coolant.
    G11285515
  14. CAUTION: Be prepared to collect escaping coolant.
    G11285516
  15. G11285087
  16. G11285518
  17. G11285519
  18. G11285520
  19. G11283644
  20. G11285522
  21. G11285523
  22. G11285524
  23. CAUTION: Be prepared to collect escaping coolant.
    G11285525
  24. CAUTION: Be prepared to collect escaping coolant.
    G11285526
  25. G11285527
  26. G11285528
  27. G11285529
  28. G11285530

    Special Tool(s):  303-1435

    Torque Specifications: 25 Nm

  29. G11285531
  30. G11284996
  31. G11285533
    • Special Tool(s):  303-1436

      Torque Specifications: 25 Nm

  32. CAUTION: Be prepared to collect escaping coolant.
    G11284660
  33. G11284542
  34. G11285536
  35. NOTE: Remove and discard the O-ring seal.
    G11285537
  36. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  37. Refer to: TRANSMISSION - V8 5.0L PETROL/V8 S/C 5.0L PETROL (G1271948) .
  38. NOTE: Remove and discard the O-ring seal.
    G11285054
  39. WARNING: Be prepared to collect escaping fluids.
    NOTE: Drain the fluid into a suitable container.
    G11285539
  40. G11285540
  41. G11285541
  42. G11285542
  43. G11285543
  44. G11285544
  45. G11285545

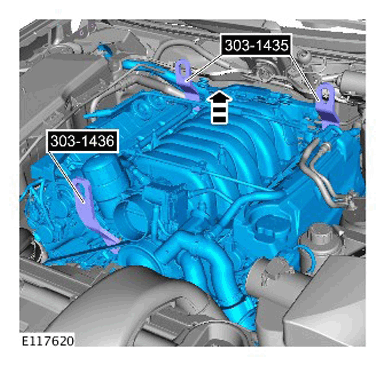

  46. NOTE: This step requires the aid of another technician.
    G11285546

    Using a suitable tool, remove the engine.

    Special Tool(s):  303-1435, 303-1436
