Transmission, Transmission Fluid Cooler And Transmission Fluid Cooler Tubes - V6 S/C 3.0L Petrol/V8 5.0L Petrol/V8 S/C 5.0L Petrol (G1451538): Removal

WARNING: This page is about a different car, the 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.

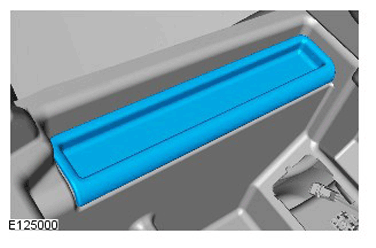

  1. G11284044

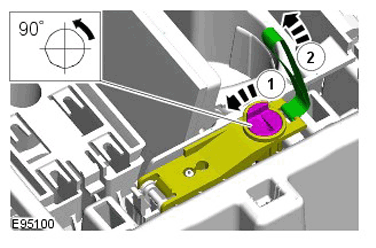

  2. G11284045
  3. Refer to: Battery Disconnect and Connect (General Procedures).
  4. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  5. Exhaust system, refer to REMOVAL AND INSTALLATION (3.0L), or REMOVAL AND INSTALLATION (5.0L).

  6. G11285057
  7. G11285072

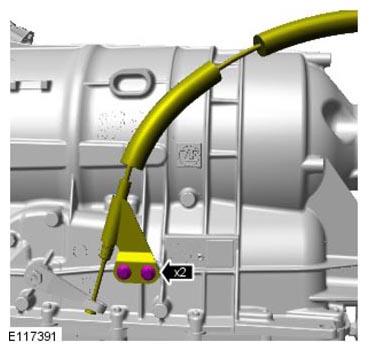

  8. G11291666

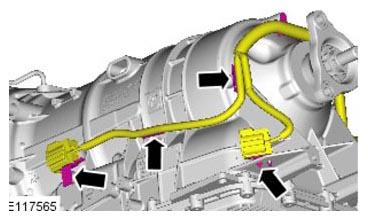

  9. G11291667

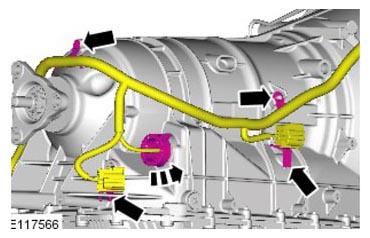

  10. G11291668

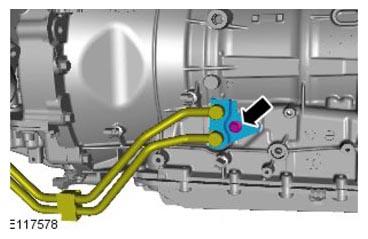

  11. CAUTION: Be prepared to collect escaping fluids.
    NOTE: Make sure that all openings are sealed. Use new blanking caps.
    G11291669
  12. G11291670
  13. G11291671
  14. G11291672
    • Make sure that the alignment mark is visible through the inspection hole on removal of the last torque converter bolt.

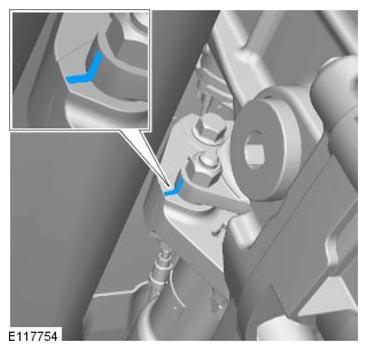

  15. NOTE: Mark the position of the driveshaft on the transmission flange.
    G11291673
  16. CAUTION: Under no circumstances must the flexible coupling (or its fixings) be loosened or removed from the driveshaft.
    G11291674

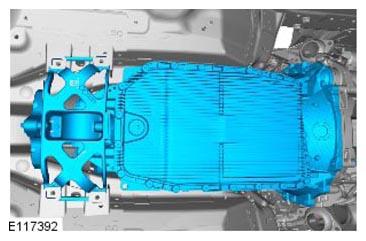

  17. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11291675

    Align the powertrain assembly jack to the transmission.

  18. G11291676

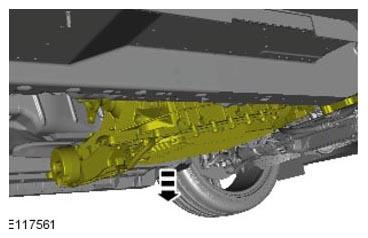

  19. NOTE: The transmission is lowered for access.
    G11291677

    Lower the rear of the transmission for access.

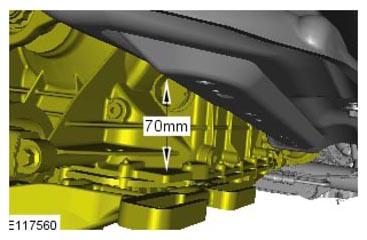

  20. NOTE: The transmission is lowered for access.
    G11291678

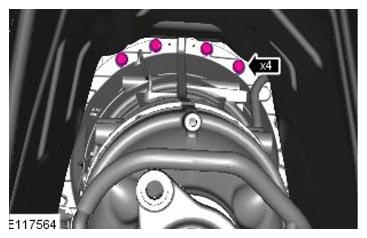

  21. G11291679

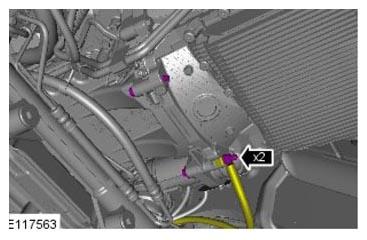

  22. G11291680

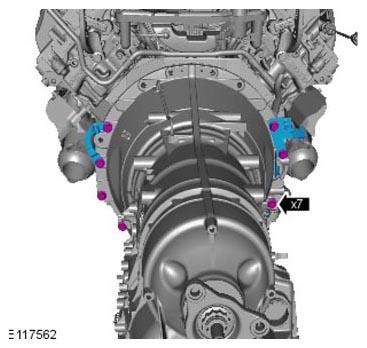

  23. G11291681
  24. CAUTION: Make sure that the torque converter remains in the transmission.
    NOTE: This step requires the aid of another technician.
    G11291682
    • Install the torque converter retainer.
  25. G11291683
  26. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11291684

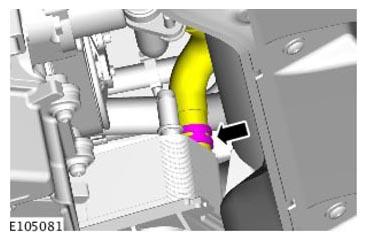

  27. CAUTION: Be prepared to collect escaping coolant.
    NOTE: Clamp the hoses to minimize coolant loss.
    G11291891
  28. CAUTION: Be prepared to collect escaping coolant.
    NOTE: Clamp the hoses to minimize coolant loss.
    G11291686
  29. CAUTION: Be prepared to collect escaping fluids.
    G11291687
  30. G11291688
