Transmission Control Module (TCM) And Main Control Valve Body - V6 S/C 3.0L Petrol/V8 5.0L Petrol/V8 S/C 5.0L Petrol (G1451641): Notes

WARNING: This page is about a different car, the 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

44.40.01	VALVE BODY ASSEMBLY - RENEW	2000 CC, GTDI	1.8
44.40.01	VALVE BODY ASSEMBLY - RENEW	3000 CC, AJ V6 (AJ126), SUPERCHARGED	1.8

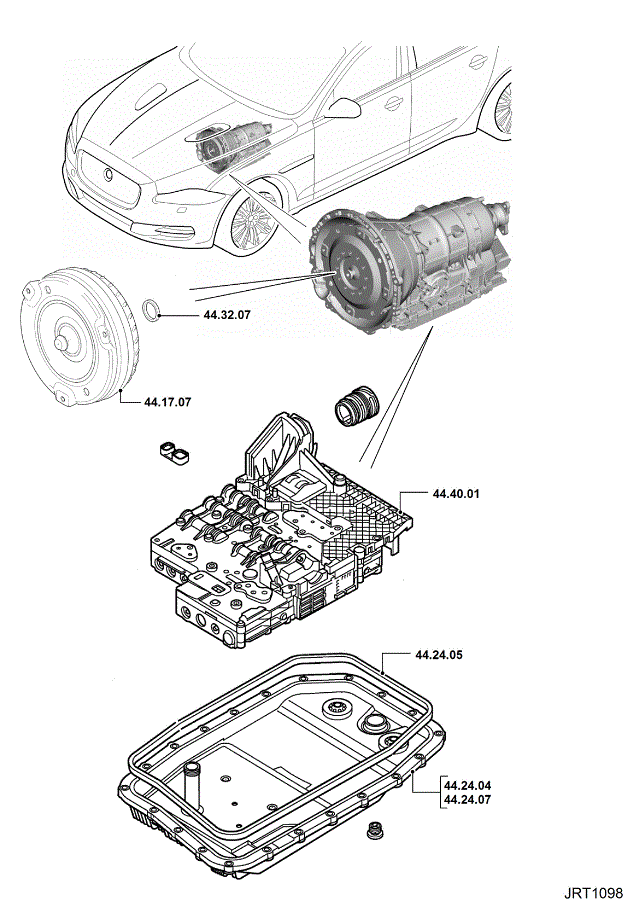

Fig 1: Removal And Installation Transmission Control Module (TCM) And Main Control Valve Body (8HP70 8-Speed Automatic Transmission RWD)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
