Transmission Control Module (TCM) And Main Control Valve Body - V6 S/C 3.0L Petrol/V8 5.0L Petrol/V8 S/C 5.0L Petrol (G1451641): Installation

WARNING: This page is about a different car, the 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
CAUTION: Make sure that new bolts are installed.

NOTE: Tighten the retaining bolts evenly and progressively.

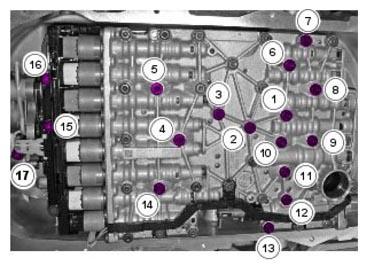

Fig 1: Main Valve Body Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 8 Nm
CAUTION:
- Make sure that new bolts are installed.
- Make sure that a new O ring seal is installed.
NOTE: Tighten the retaining bolts evenly and progressively.

Fig 2: Hydraulic Impulse Storage (HIS) Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification: 8 Nm
Using the diagnostic tool, calibrate the main control valve body and the transmission control module (TCM).
