Component Location

G11293886

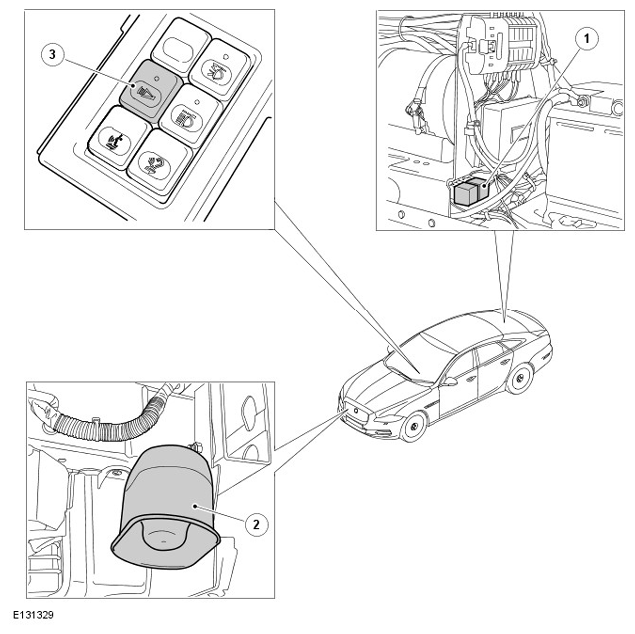

ITEM DESCRIPTION
1 Siren relay
NOTE: (positions of siren relay and adjacent intercom power relay may be reversed on some vehicles)
2 Siren
3 Siren switch
