Cooling Fan Motor And Shroud - V8 S/C 5.0L Petrol (G1269156): Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Radiator Splash Shield .
  3. Refer to: Air Deflector .
  4. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR - V8 S/C 5.0L PETROL (G1271939) or AIR CLEANER OUTLET PIPE T-CONNECTOR - V8 5.0L PETROL (G1269170) .
  5. Refer to: AIR CLEANER LH (G1271879) .
  6. Refer to: AIR CLEANER RH (G1271880) .
  7. Refer to: AIR CLEANER OUTLET PIPE LH (G1189205) .
  8. Refer to: AIR CLEANER OUTLET PIPE RH (G1189206) .
  9. G11285542
  10. G11285543

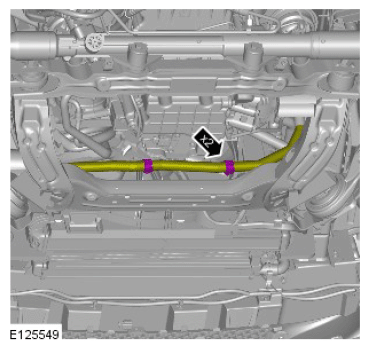

  11. G11287829
  12. G11285544

    Torque Specification: 7 Nm

  13. G11285545
  14. G11287832
