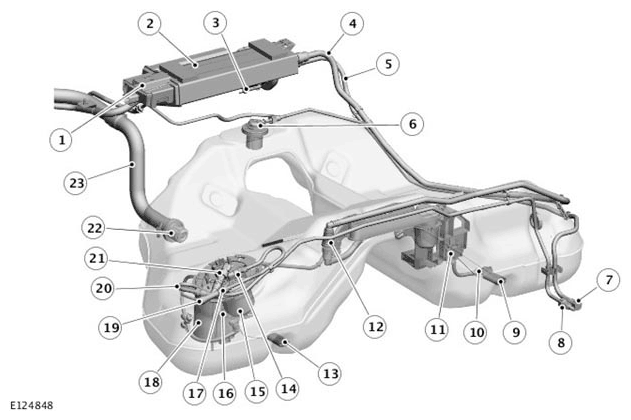

Fuel Tank
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel Pump Driver Module (FPDM) |
| 2 | Evaporative emissions canister |
| 3 | Diagnostic Module Tank Leakage (DMTL) pump (NAS only) |
| 4 | Evaporative emissions pipe |
| 5 | Pipe - Evaporative emissions canister to purge valve |
| 6 | Vapor pressure control valve |
| 7 | Pipe connection - Evaporative emissions canister to purge valve |
| 8 | Fuel supply to engine |
| 9 | Fuel level sensor float |
| 10 | Fuel pick up left side of tank |
| 11 | Fuel level sensor - 'B' |
| 12 | Liquid Vapor Separator (LVS) and vent valve |
| 13 | Fuel level sensor float |
| 14 | Fuel lift pump outlet connection |
| 15 | Fuel filter |
| 16 | Fuel level sensor - 'A' |
| 17 | Fuel supply connection from pump to manifold |
| 18 | Fuel pump module |
| 19 | Manifold |
| 20 | Fuel supply outlet connection to engine |
| 21 | Fuel pressure sensor - Low Pressure (LP) fuel system |
| 22 | Fuel tank inlet check valve |
| 23 | Fuel filler hose |
The fuel tank is a saddle type tank, blow molded from High Density Poly Ethylene. The tank is located forward of the rear suspension and is mounted in a shield and secured to the vehicle using two metal straps. The tank is a sealed unit with the only internal access being through the fuel pump module aperture on the top of the tank.
The flange is fitted with a locking ring and seal. The seal locates in a groove on the tank. The locking ring locates and clamps on the encapsulated ring that is molded into the fuel tank. The flange has a tag which locates in the top of the tank to ensure correct orientation.
A carrier within the tank provides for the mounting of the passive side jet pump tube, vent valve and Liquid Vapor Separator (LVS), level sensors and passive side drain. A roll over valve is welded externally at the rear of the tank and is connected into the vent pipe via a tee-piece.
