Component Location - Rest Of World (Row)
WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

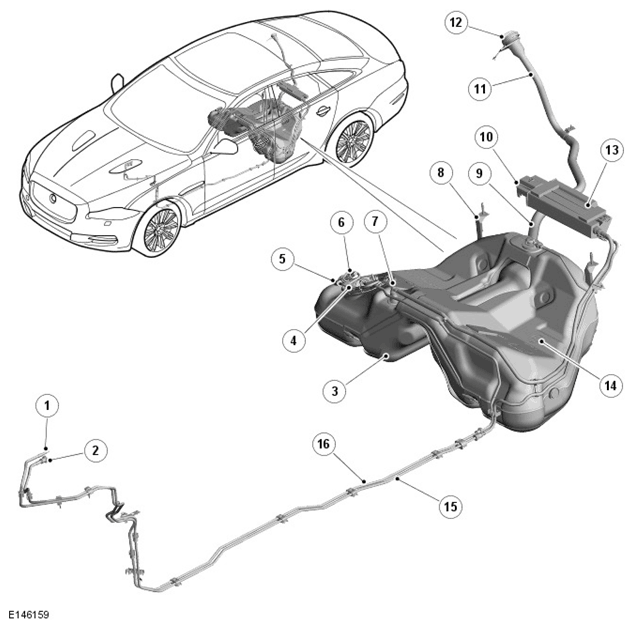

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel supply pipe connection |
| 2 | Evaporative emissions pipe connection |
| 3 | Fuel tank shield |
| 4 | Fuel pump module assembly |
| 5 | Manifold |
| 6 | Fuel pressure sensor - Low Pressure (LP) fuel system |
| 7 | Fuel Limit Vent Valve (FLVV) |
| 8 | Fuel tank mounting strap (2 off) |
| 9 | Fuel filler hose |
| 10 | Fuel Pump Driver Module (FPDM) |
| 11 | Fuel filler pipe |
| 12 | Fuel filler cap and lanyard |
| 13 | Evaporative emissions canister |
| 14 | Fuel tank |
| 15 | Pipe - evaporative emissions canister to purge valve |
| 16 | Pipe - Fuel supply connection |
