Supercharger Belt TENSIONER (G1269317): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Air Cleaner Outlet Pipe RH (303-12 Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  2. Refer to: Air Cleaner Outlet Pipe T-Connector (303-12 Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).
  3. CAUTION: Note the fitted position of the component prior to removal.
    G11285711

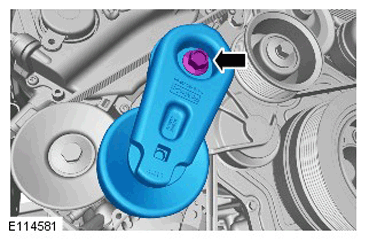

  4. G11293726

    Torque Specification: 47 Nm
