Air Suspension System: Silencer

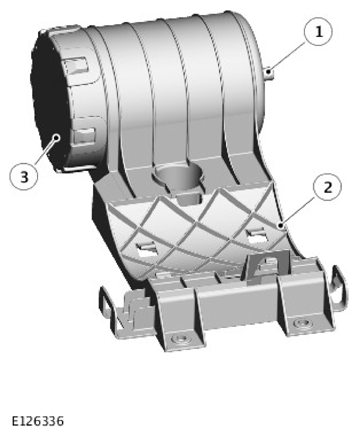

G11589792
ITEM DESCRIPTION
1 Air intake/exhaust pipe connector
2 Reservoir bracket
3 Air intake/exhaust cap

The silencer is integrated into the reservoir bracket, and functions as an air intake and exhaust silencer. Air is exhausted as the system is leveling down.
