Throttle Body (G1557479): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR (G1549760) (V6 S/C 3.0L Petrol, Removal and Installation).
Refer to: Cooling System Partial Draining and Vacuum Filling (V6 S/C 3.0L Petrol, General Procedures).

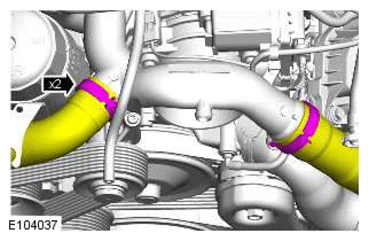

CAUTION: Be prepared to collect escaping coolant.

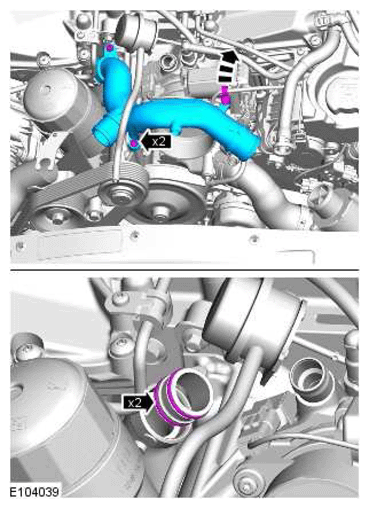

NOTE:
- This step should only be carried out on vehicles pre 2015.
- Remove and discard the seals.
Renew Part: Engine coolant outlet seal.

Torque Specification: 10 Nm

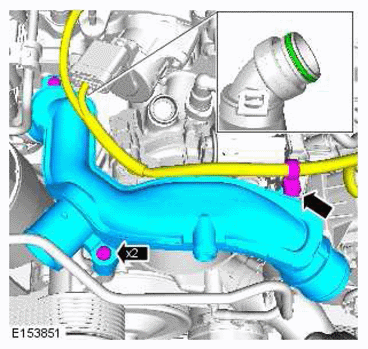

NOTE:
- This step should only be carried out on vehicles from 2015 onwards.
- Remove and discard the seal.
Renew Part: Engine coolant outlet seal.

Torque Specification: 10 Nm

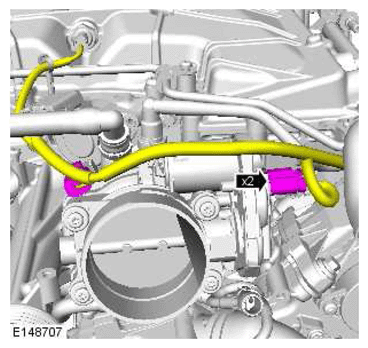

Torque Specification: 10 Nm

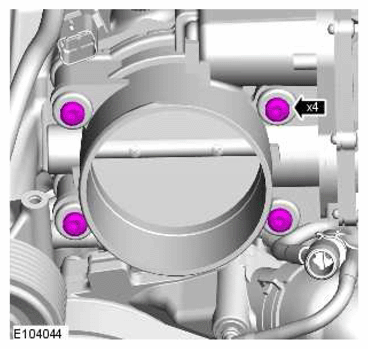

CAUTION:
- Take extra care when removing the throttle body, failure to follow this instruction may result in damage to the manifold absolute pressure and temperature (MAPT) sensor.
- Do not attempt to clean the throttle body bore, build up of deposits reduces air leakage past the throttle plate at the fully closed position.
NOTE:
- Remove and discard the gasket.
- Install a new gasket.
