Right Fuel Rail (G1557478): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

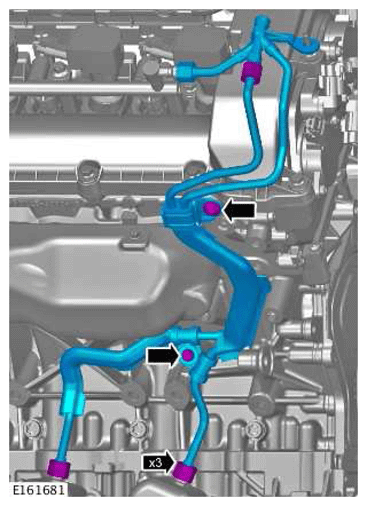

  1. CAUTION: Lubricate only the union threads with clean engine oil.
    NOTE:
    • Engine shown removed for clarity.
    • Install the bolts and unions finger tight before final tightening.
    • Remove and discard the blanking caps.
    G11419214

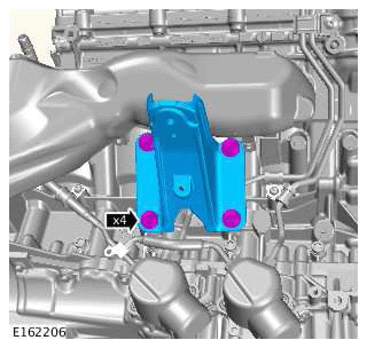

  2. G11419215

    Torque Specification: 48 Nm

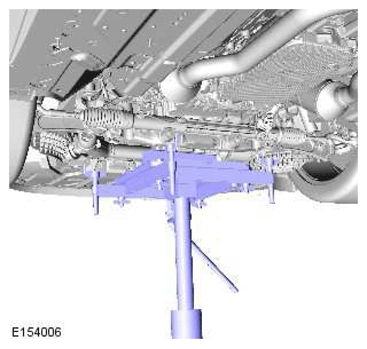

  3. G11419216

    Remove the special tool.

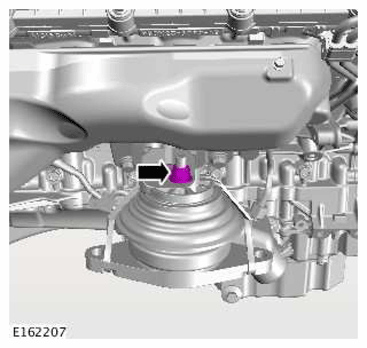

  4. G11419217

    Torque Specification: 48 Nm

  5. NOTE: Some components shown removed for clarity.

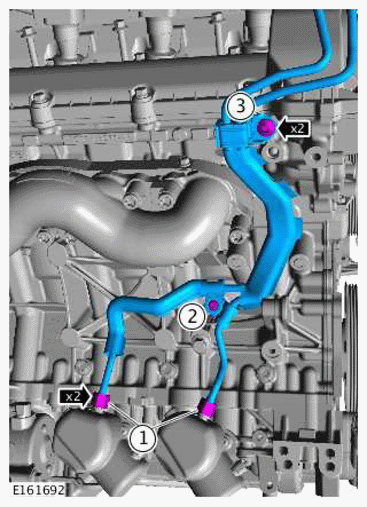

    Fig 1: High-Pressure Fuel Supply Lines Nuts Tightening Sequence
    G11419218Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specifications:

    Unions (1) 21 Nm

    M6 (2) 11 Nm

    M8 (3) 25 Nm

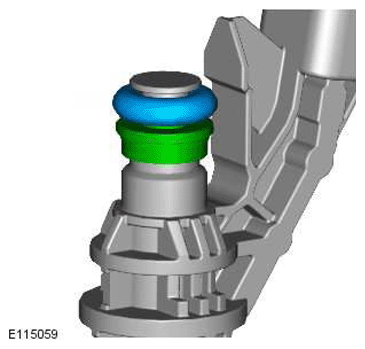

  6. G11419219

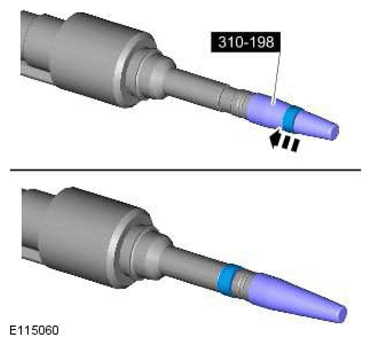

  7. G11419220

    Special Tool(s):  310-198

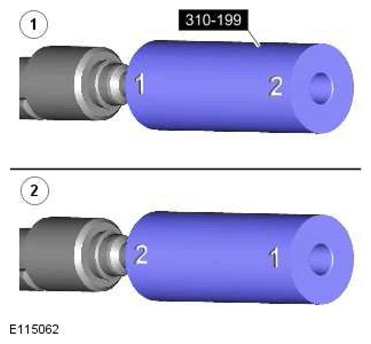

  8. G11419221

    Special Tool(s):  310-199

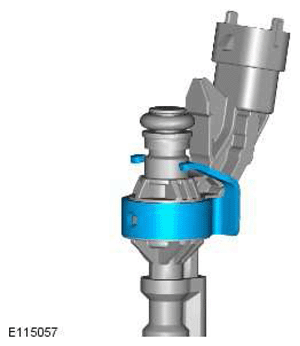

  9. CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.
    G11419222

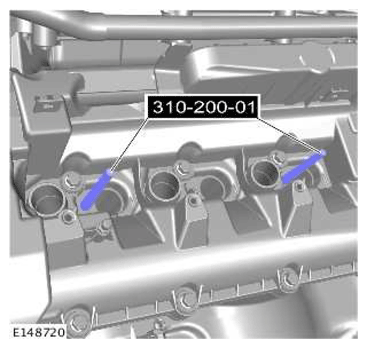

  10. CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.
    G11419223

    Special Tool(s):  310-200-01

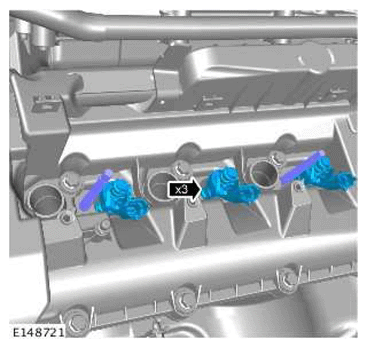

  11. CAUTION:
    • Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
    • When installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.
    G11419224
  12. NOTE: This step is only required if a new fuel rail is installed.

    Refer to: Fuel Rail Pressure Sensor (Removal and Installation).

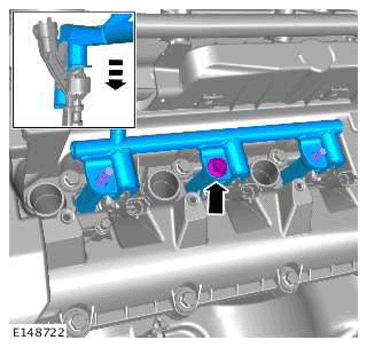

  13. CAUTION:
    • If new fuel injectors are installed, a new injector clamp must be installed.
    • Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
    • Tighten the fuel rail retaining bolts a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.
    G11419225

    Torque Specification: 20 Nm

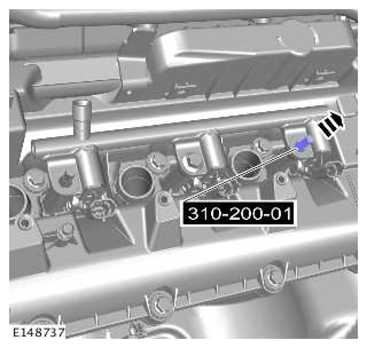

  14. NOTE: LH illustration shown, RH is similar.
    G11419226

    Special Tool(s):  310-200-01

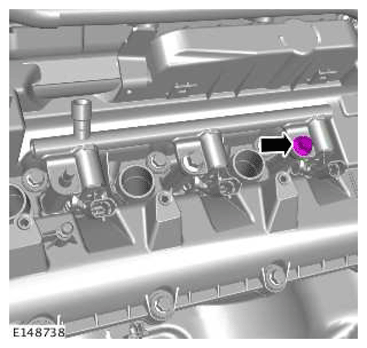

  15. NOTE: LH illustration shown, RH is similar.
    G11419227

    Torque Specification: 20 Nm

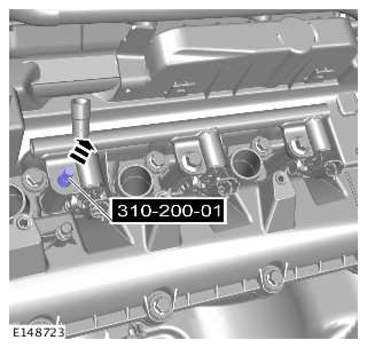

  16. NOTE: LH illustration shown, RH is similar.
    G11419228

    Special Tool(s):  310-200-01

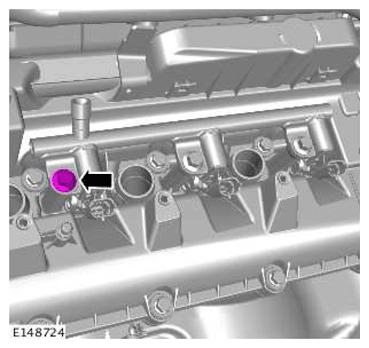

  17. NOTE: LH illustration shown, RH is similar.
    G11419229

    Torque Specification: 20 Nm

  18. NOTE:
    • Tighten the bolts in the indicated sequence.
    • LH illustration shown, RH is similar.

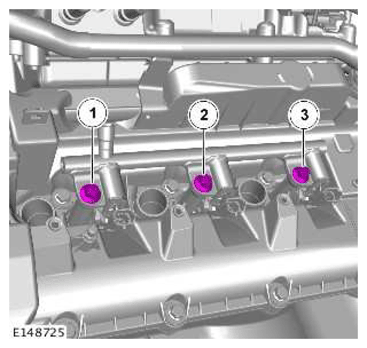

    Fig 2: Fuel Rail Bolts Tightening Sequence
    G11419230Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Torque Specifications:

      Bolt 2 30 Nm

      Bolt 3 30 Nm

      Bolt 1 30 Nm

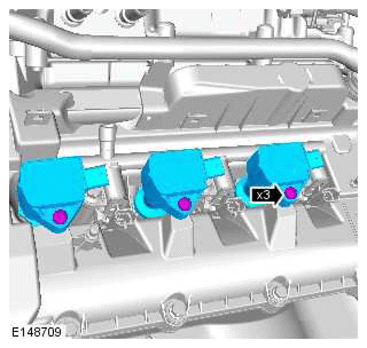

  19. NOTE: LH illustration shown, RH is similar.
    G11419231

    Torque Specification: 8 Nm

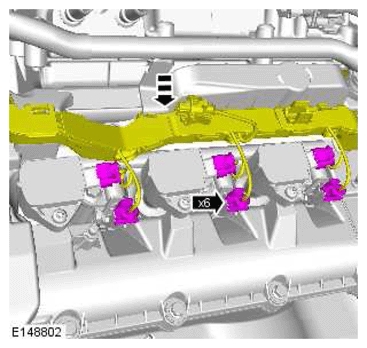

  20. NOTE: LH illustration shown, RH is similar.
    G11419232

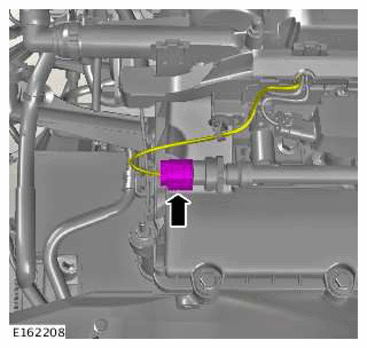

  21. G11419233

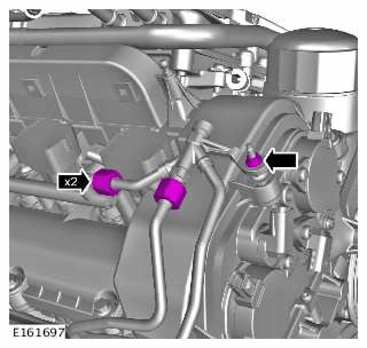

  22. NOTE: Remove and discard the blanking caps.
    G11419234

    Torque Specifications:

    Unions 21 Nm

    Nut 6 Nm

  23. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

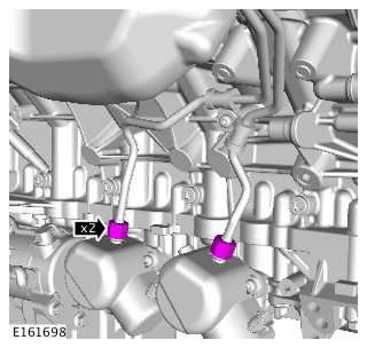

  24. NOTE: Some components shown removed for clarity.
    G11419235

    Torque Specification: 21 Nm

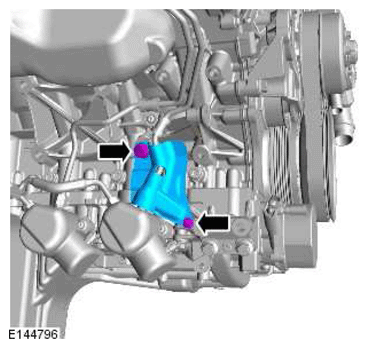

  25. NOTE: Engine shown removed for clarity.
    G11419236
    • Torque Specifications:

      M10 29 Nm

      M6 11 Nm

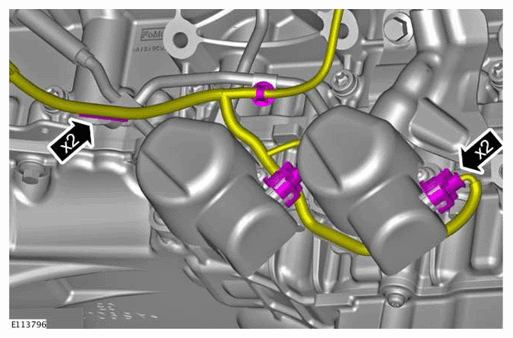

  26. NOTE: Engine shown removed for clarity.
    G11419237

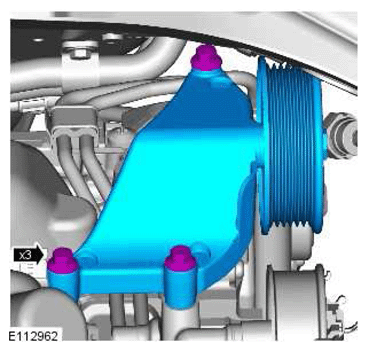

  27. G11419238

    Torque Specification: 25 Nm

  28. Refer to: Generator (Removal and Installation).
  29. Refer to: Air Deflector (Removal and Installation).
  30. Lower the vehicle.

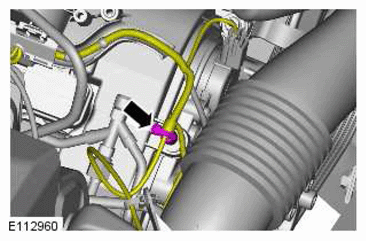

  31. G11419239

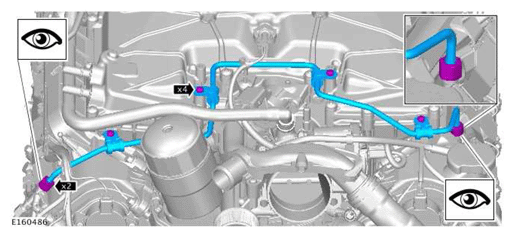

  32. CAUTION: Lubricate only the union threads with clean engine oil.
    NOTE:
    • Do not tighten at this stage.
    • Remove and discard the blanking caps.
    G11419240
  33. G11419241
    • Torque Specifications:

      Unions 21 Nm

      Bolts 8 Nm

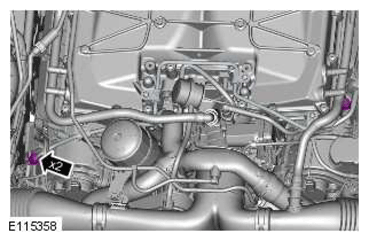

  34. G11419242
    • Torque Specification: 21 Nm

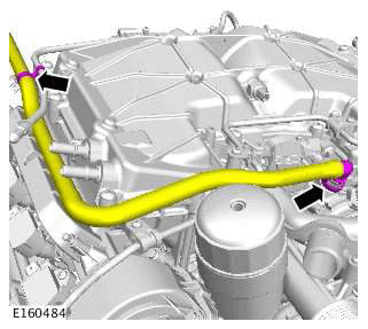

  35. G11419243

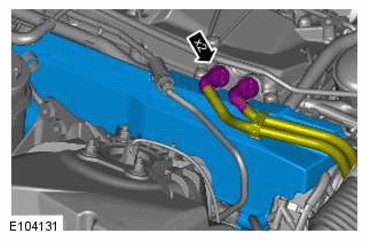

  36. G11419244

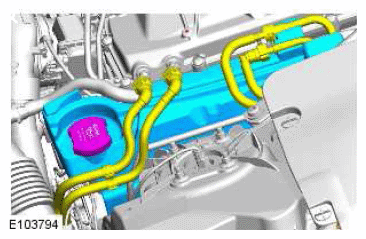

  37. G11419245

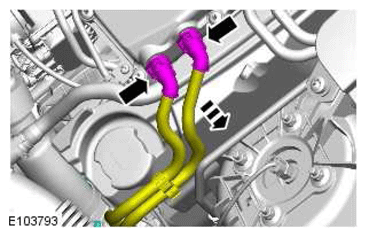

  38. CAUTION: Be prepared to collect escaping fluids.
    G11419246
  39. Refer to: Right Air Cleaner (Removal and Installation).
  40. Refer to: Secondary Bulkhead Right Panel - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
  41. Refer to: Engine Cover - V8 S/C 5.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
  42. Refer to: Battery Disconnect and Connect (General Procedures).
